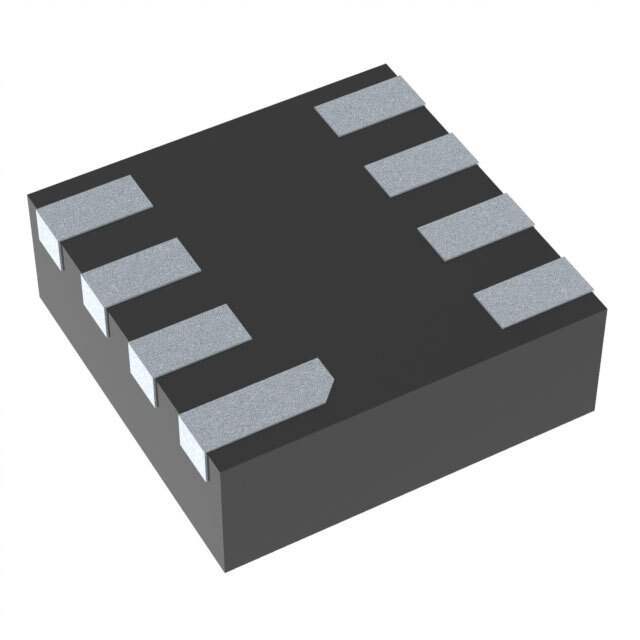

LMK1C1102DQFT Texas Instruments
Same model may have multiple batches, images only for reference.

LMK1C1102DQF

Part No LMK1C1102DQF
Manufacturer Texas Instruments
Catalog Clock/Timing - Clock Buffers, Drivers
Description IC CLK BUFFER 1:2 250MHZ 8WSON
Datasheet
LMK1C1102DQF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306331-LMK1C1102DQF
Category Integrated Circuits (ICs) Clock/Timing Clock Buffers, Drivers
Manufacturer Texas Instruments
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Clock Buffer
Input Clock, LVCMOS
Output Clock, LVCMOS
Operating Temperature -40°C ~ 125°C (TA)
Voltage - Supply 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian LMK1C1102DQF CAD Model

Description

  • High-performance 1:2, 1:3 or 1:4 LVCMOS clock buffer
  • Very low output skew < 50 ps
  • Extremely low additive jitter < 50 fs maximum  7.5 fs typical at VDD = 3.3 V 10 fs typical at VDD = 2.5 V 19.2 fs typical at VDD = 1.8 V
  • Very low propagation delay < 3 ns
  • Synchronous output enable
  • Supply voltage: 3.3 V, 2.5 V, or 1.8 V 3.3-V tolerant input at all supply voltages<br /> Fail-safe inputs
  • fmax = 250 MHz for 3.3 V fmax = 200 MHz for 2.5 V and 1.8 V
  • Operating temperature range: –40°C to 125°C
  • Available in 8-pin TSSOP package
  • Available in 8-pin WSON package
