The Texas Instruments LMG1020YFFR is a state-of-the-art, low-side GaN driver designed to optimize the performance of gallium nitride (GaN) FETs in a variety of applications. This driver is ideal for high-speed applications due to its incredibly fast propagation delays and switching frequencies.

Key Features

• Ultra-Fast Propagation Delays: The LMG1020YFFR boasts a propagation delay of typically 2.5 ns, ensuring high-speed operation and minimal delay in signal processing.
• High Switching Frequency: Capable of operating at up to 100 MHz, this driver is well-suited for applications requiring high-frequency switching, such as RF power amplifiers, lidar, and class-D audio amplifiers.
• Efficient Design: With a total delay time of less than 5 ns, the driver enables efficient switching, reducing power loss and improving overall system performance.

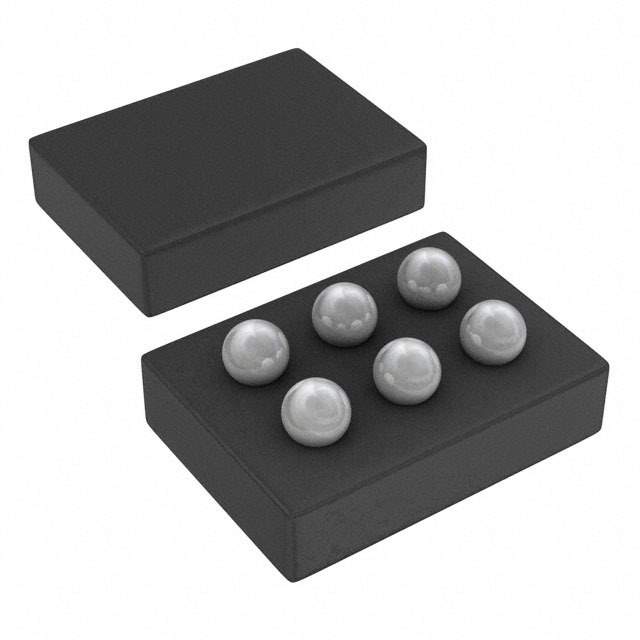

• Compact Footprint: The small 0.8 mm x 1.2 mm WSON package allows for a compact PCB layout, which is crucial for space-constrained applications.
• Robustness: The LMG1020YFFR is designed to withstand negative voltage transients, enhancing system reliability in demanding environments.
• Integrated Dead-Time Control: This feature helps prevent shoot-through, further improving the efficiency and reliability of the power stage.

Applications

The versatility of the LMG1020YFFR makes it an excellent choice for a wide range of applications. It is particularly well-suited for use in:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Drives
• Class-D Audio Amplifiers
• Wireless Charging Systems
• High-Speed DC/AC Inverters

Conclusion

In conclusion, the Texas Instruments LMG1020YFFR is a high-performance, low-side GaN driver that offers exceptional speed and efficiency for driving GaN FETs. Its robust design and compact size make it an ideal choice for engineers looking to enhance the performance of their power conversion systems, audio amplifiers, or any other high-frequency switching application.
