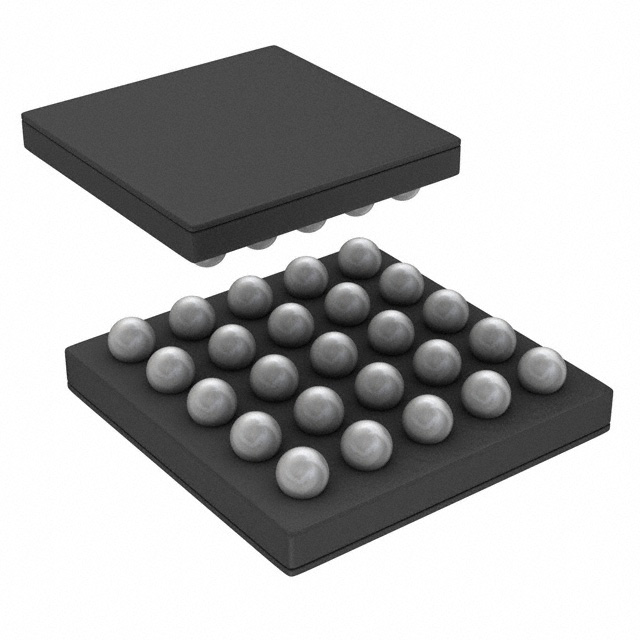

Same model may have multiple batches, images only for reference.
LM4949TLX/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LM4949TLX/NOPB

Part No LM4949TLX/NOPB
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Audio
Description IC AUDIO SUBSYSTEM 2.5W D 25USMD
Datasheet
LM4949TLX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type Class D
Output Type 2-Channel (Stereo) with Stereo Headphones
Max Output Power x Channels @ Load 2.5W x 2 @ 4 Ohm; 190mW x 2 @ 16 Ohm
Supply Voltage - Operating 2.7 V to 5.5 V
Features Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 25-uSMD
Dimension 25-WFBGA
Win Source Part Number 109114-LM4949TLX/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM4949TLX/NOPB CAD Model

Description

The LM4949TLX/NOPB is a highly advanced stereo audio power amplifier designed and manufactured by Texas Instruments, a leading global semiconductor company.

  • Power: 2.65W, 2-channel device.
  • Voltage Range: Operates with a supply voltage range of 2.2V to 5.5V.
  • Noise Reduction: "Pop & click" suppression circuitry.
  • Current Consumption: Shutdown mode which significantly reduces current consumption.
  • Package: Space-saving, 25-bump micro SMD package.
  • Protection: Built-in thermal and short-circuit protection.
