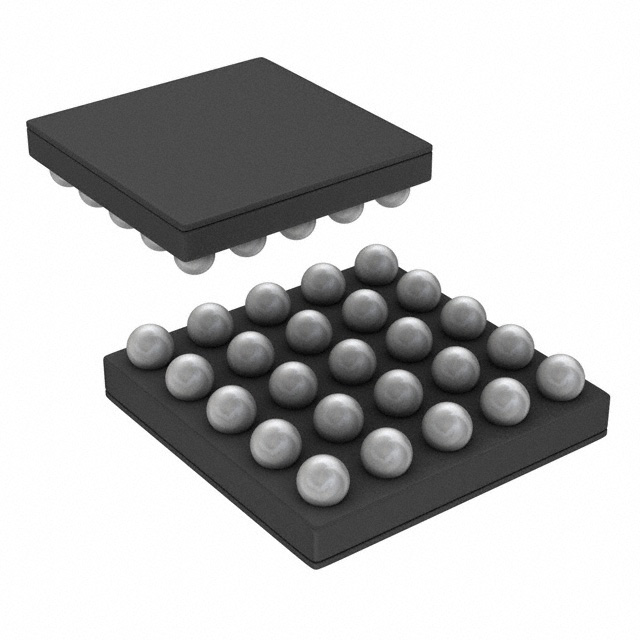

LM4947TLX Texas Instruments
Same model may have multiple batches, images only for reference.

LM4947TLX

Part No LM4947TLX
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Audio
Description IC AUDIO SUBSYSTM 1.19W D 25USMD
Datasheet
LM4947TLX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Type Class D
Output Type 1-Channel (Mono) with Stereo Headphones
Max Output Power x Channels @ Load 1.19W x 1 @ 8 Ohm; 87mW x 2 @ 32 Ohm
Supply Voltage - Operating 2.7 V to 5.5 V
Features 3D, Depop, Differential Inputs, I2C, Mute, Shutdown, SPI, Thermal Protection, Volume Control
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 25-uSMD
Dimension 25-WFBGA
Win Source Part Number 071490-LM4947TLX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM4947TLX CAD Model

Description

The LM4947TLX is a highly sophisticated, integrated audio subsystem designed and manufactured by Texas Instruments.

  • Amplifier: Mono class D speaker amplifier.
  • Additional Components: Stereo class AB headphone amplifier and an analog input.
  • Output Power: 1.2W into an 8Ω load.
  • Audio Enhancement: Three-dimensional (3D) audio enhancement feature.
  • Power Management: Highly efficient power management system.
  • Interface: I2C compatible interface.
  • Power Supply Range: 2.7V to 5.5V.
  • Package: Compact, 25-bump micro SMD package.
  • Protection: Over-temperature and short-circuit protection.
