The LM4670ITLX is an advanced audio amplifier from Texas Instruments, designed to deliver high-quality sound with minimal power consumption. It is an ideal solution for portable and compact audio applications, including mobile phones, tablets, laptops, and other personal electronics where space is at a premium and energy efficiency is crucial.

Key Features

• Output Power: The LM4670ITLX is capable of delivering 2.5W of continuous output power with a 4Ω load and 5V power supply, ensuring loud and clear audio performance.
• High Efficiency: With an efficiency of 90%, this audio amplifier ensures extended battery life in portable applications by minimizing power loss.
• Low Noise: The device boasts an ultra-low noise floor, which results in a cleaner audio output, enhancing the listening experience.
• Advanced Pop & Click Suppression: The LM4670ITLX reduces pop and click noises during power on and off transitions, thereby improving the overall audio quality.
• Micro-Power Shutdown Mode: The amplifier features a shutdown mode that significantly reduces power consumption when not in use, preserving battery life in portable devices.

Technical Specifications

• Supply Voltage Range: 2.4V to 5.5V, accommodating a variety of power sources.
• Load Impedance: Stable operation with 4Ω to 8Ω speakers, providing flexibility in speaker choice.

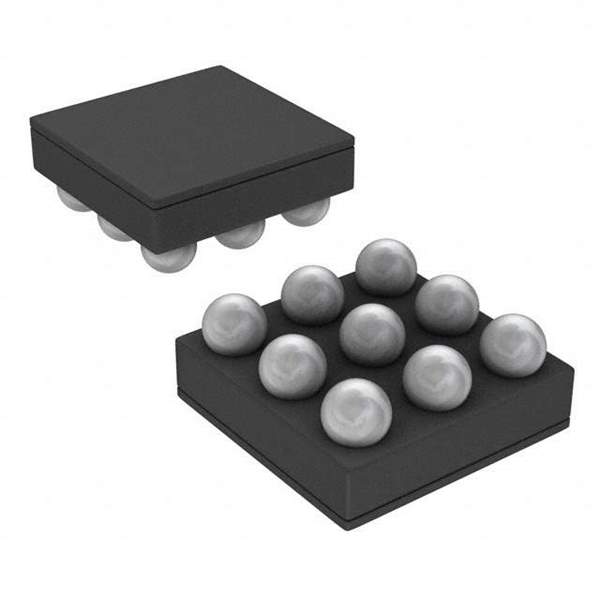

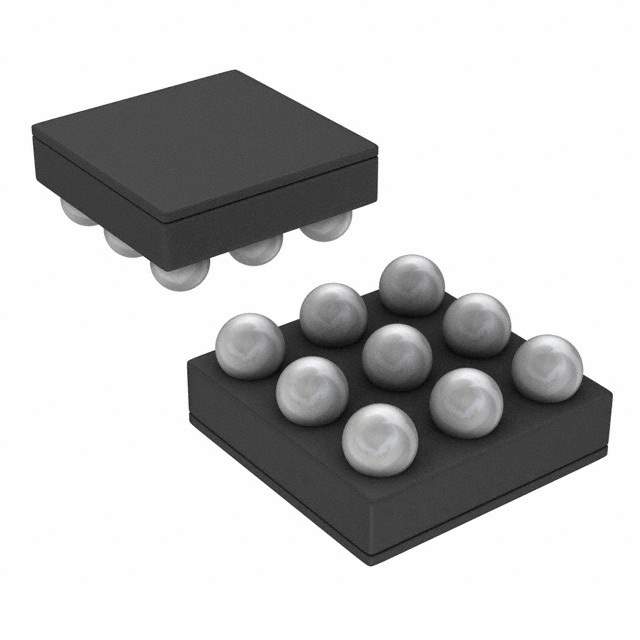

• Package: The LM4670ITLX comes in a micro SMD package, which is perfect for space-constrained applications.
• Thermal Protection: The device includes built-in thermal protection to prevent overheating during high-power operation.

Applications

The compact and efficient design of the LM4670ITLX makes it suitable for a wide range of audio applications. It is commonly used in portable electronic devices such as smartphones, tablets, and personal media players, as well as in hands-free and Bluetooth speakers, where maintaining audio quality without compromising battery life is essential.

Conclusion

The Texas Instruments LM4670ITLX stands out as a high-performance audio amplifier that offers a perfect blend of power, efficiency, and size. Its advanced features enable manufacturers to enhance the audio experience in portable devices while maintaining energy efficiency and reliability.
