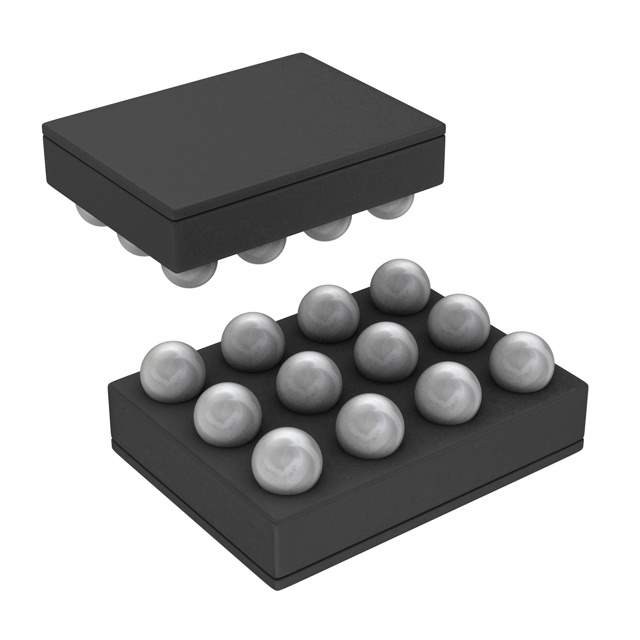

LM3561TMX/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM3561TMX/NOPB

Part No LM3561TMX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 12DSBGA
Datasheet
LM3561TMX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Operating Input Voltage(Min) 2.5V
Maximum Supply Voltage 5.5V
Channel Output Current 600mA (Flash)
Frequency 2MHz
Dimming I2C
Applications Camera Flash
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 12-DSBGA
Win Source Part Number 108038-LM3561TMX/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3561TMX/NOPB CAD Model

Description

The LM3561TMX/NOPB is a highly advanced, top-tier product from the renowned electronics company, Texas Instruments.

  • Flash LED Driver Current: Up to 1.2A
  • Current Control: Adjustable
  • Thermal Protection: Built-in
  • LED Indicators: Two
  • Switch: Integrated 2MHz or 4MHz
  • Current Regulator: Low-dropout
  • Battery Compatibility: Single-cell Li-Ion and Li-Polymer
