Product Overview: LM3530UME-25A/NOPB

The LM3530UME-25A/NOPB is a high-performance, integrated LED driver from Texas Instruments designed to efficiently manage backlighting solutions for small to medium-sized LCD panels. This device is well-suited for a variety of applications, including smartphones, tablets, and personal navigation devices. Its main function is to provide a consistent and adjustable power supply to the LED backlight of an LCD, ensuring optimal brightness and enhancing the visual experience for the user.

Key Features

• Adjustable Output Voltage: The LM3530 offers a wide output voltage range that can be adjusted to match the requirements of the LED array being driven, ensuring compatibility with a variety of LED configurations.
• High Efficiency: With an integrated boost converter, the device operates with high efficiency, which is critical for battery-powered applications where power conservation is a priority.
• Content-Adaptive Backlight Control (CABC): This feature allows the backlight intensity to be automatically adjusted based on the content being displayed, which can help to reduce power consumption and extend battery life.
• Flexible Dimming Options: The LM3530 supports both analog and pulse-width modulation (PWM) dimming methods, giving designers the flexibility to choose the dimming approach that best suits their application.
• Protection Features: Built-in over-voltage, over-temperature, and LED open-circuit protection mechanisms safeguard the device and the LED array from potential damage.

Product Details

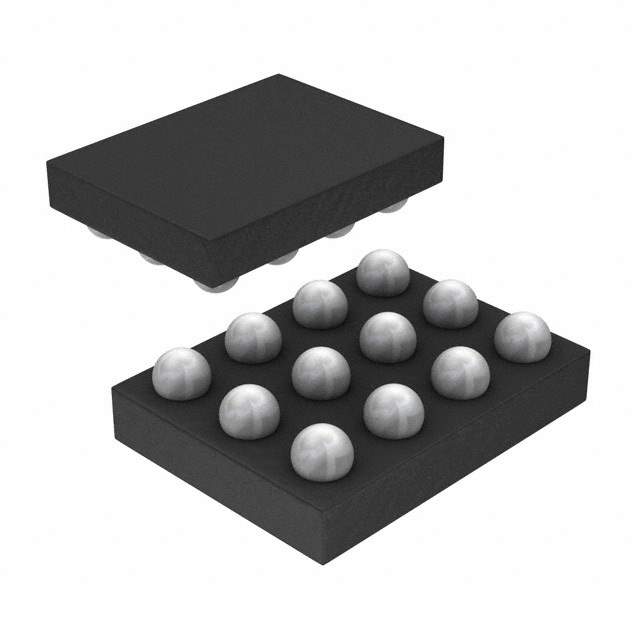

The LM3530UME-25A/NOPB comes in a micro SMD package, which is ideal for space-constrained applications. It operates over a wide input voltage range from 2.7V to 5.5V, allowing it to be used with a variety of power sources. The device also features an I2C-compatible interface, which provides a means for programmable settings such as output current, dimming mode, and transition rates.

Applications

• Mobile Phones and Smartphones
• Tablets and Portable Computing Devices
• Personal Navigation Devices
• General LCD Backlighting Applications

The LM3530UME-25A/NOPB from Texas Instruments represents a reliable and versatile solution for designers looking to enhance the visual performance of their LCD applications while maintaining power efficiency and device protection.
