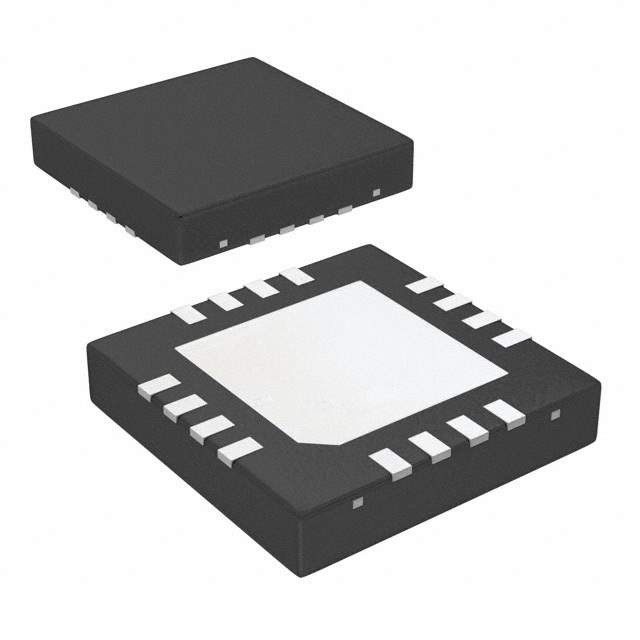

LM3502SQX-35/NOPB

Name: LM3502SQX-35/NOPB
Brand: Texas Instruments
SKU: 183585
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LM3502SQX-35/NOPB
Manufacturer	Texas Instruments
Catalog	PMIC - LED Drivers
Description	IC LED DRIVER RGLTR DIM 16WQFN
Datasheet	LM3502SQX-35/NOPB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Obsolete(EOL)
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	2
Operating Input Voltage(Min)	2.5V
Maximum Supply Voltage	5.5V
Output Voltage	35V
Channel Output Current	750mA (Switch)
Frequency	1MHz
Dimming	PWM
Applications	Backlight
Temperature Range - Operating	-40°C to 85°C (TA)
Mounting	SMD (SMT)
Case / Package	16-WQFN (4x4)
Win Source Part Number	071257-LM3502SQX-35/NOPB
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian LM3502SQX-35/NOPB CAD Model

Alternative Products

Description

The LM3502SQX-35/NOPB is a high-performance, advanced LED driver developed by Texas Instruments, a leading global semiconductor company.

Topology: Constant frequency, pulse width modulation (PWM) boost regulator
LEDs Driven: Up to 10 white LEDs in series; up to 4 series strings of LEDs
Input Voltage Range: 2.7V to 5.5V
Efficiency: Up to 83%
Package: Small 24-pin WQFN package
Switching Frequency: 1.25 MHz
