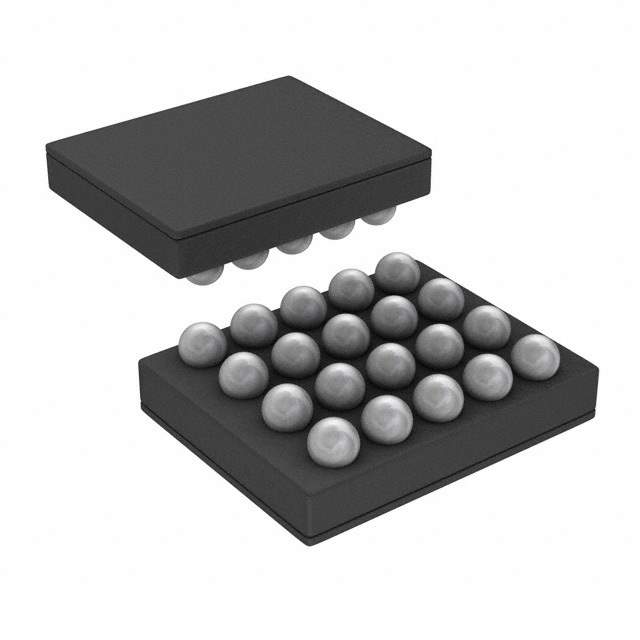

LM2756TMX Real Image
Same model may have multiple batches, images only for reference.

LM2756TMX

Part No LM2756TMX
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 20USMD
Datasheet
LM2756TMX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 8
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Output Voltage 2 V to 4 V
Channel Output Current 30mA
Frequency 1.3MHz
Dimming I2C
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-uSMD
Win Source Part Number 071130-LM2756TMX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2756TMX CAD Model

Description

The Texas Instruments LM2756TMX is a high-efficiency, multi-display LED driver designed to provide advanced solutions for a wide range of lighting applications.

  • LEDs Driven: Up to six white LEDs in parallel
  • Features: Programmable soft-start function
  • Interface: I2C-compatible
  • Package: Compact, lead-free, 20-bump micro SMD package
