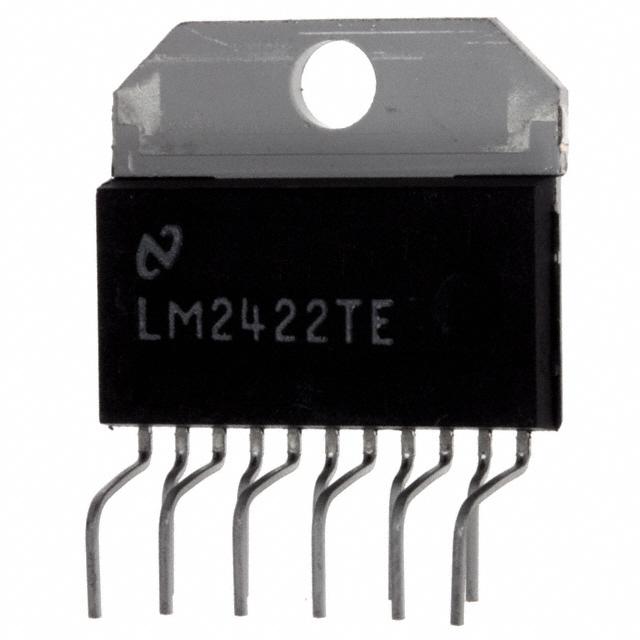

LM2422TE Texas Instruments
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Obsolete(EOL)
Display Type CRT
Operating Supply Current 45mA
Supply Voltage - Operating 100 V to 230 V
Mounting Through Hole
Case / Package TO-220-11
Win Source Part Number 071050-LM2422TE
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2422TE CAD Model

Description

The LM2422TE from Texas Instruments is a high-performance monolithic triple channel CRT (Cathode Ray Tube) driver designed specifically for use in color monitor applications.

  • Channel Count: Three
  • Application: Color Monitor
  • Output Current: Up to 0.7A per channel
  • Operating Voltage: Up to 80V
  • Bandwidth: 80 MHz
  • Slew Rate: 2000 V/µs
  • Package: TO-220 with 11 leads
