The LM236H-2.5 is a precision 2.5V shunt voltage reference from Texas Instruments, offering excellent stability and low temperature coefficient. This high-performance component is designed to maintain a precise voltage reference over a wide range of operating conditions, making it an ideal choice for precision data conversion and regulation applications.

Key Features

• Reference Voltage: A fixed 2.5V output with an impressive ±0.5% initial accuracy.
• Temperature Coefficient: With a temperature coefficient as low as 20 ppm/°C, the LM236H-2.5 ensures stable performance over a temperature range from -55°C to +125°C.
• Low Dynamic Impedance: The dynamic impedance of this device is less than 1Ω, which helps in maintaining voltage stability under varying load conditions.
• Versatility: This reference can be used in several configurations, including series or shunt, enabling it to fit a wide array of application needs.

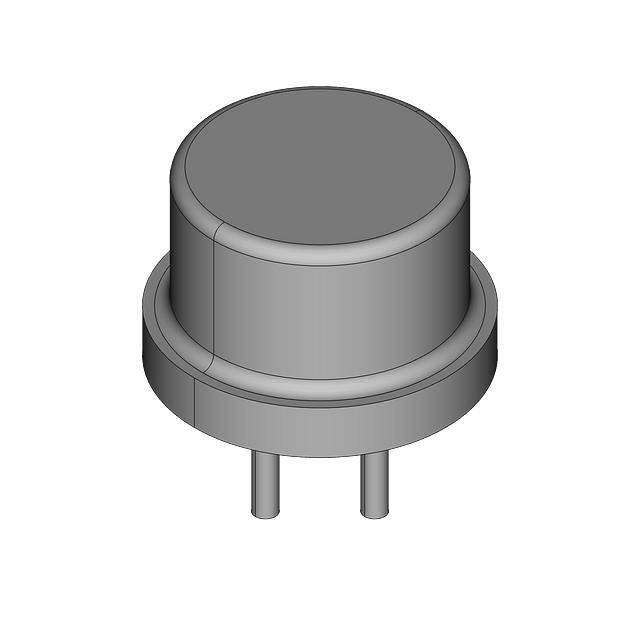

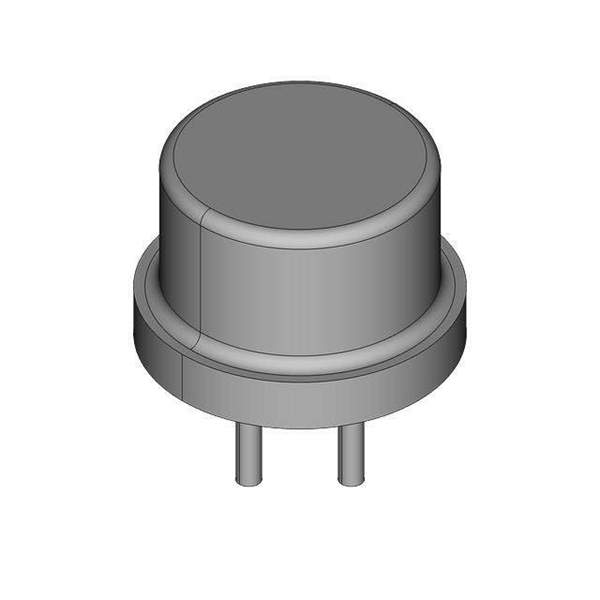

• Package: Housed in a robust and reliable TO-46 metal can package, the LM236H-2.5 is designed for high durability in challenging environments.

Applications

The LM236H-2.5's precision and reliability make it suitable for a variety of applications, including:

• Analog-to-Digital (A/D) and Digital-to-Analog (D/A) conversion
• Power supply monitoring
• Portable instrumentation
• Test equipment calibration
• Battery chargers and power management

Reliability and Quality

Texas Instruments is known for its commitment to quality and reliability. The LM236H-2.5 voltage reference is no exception, with rigorous testing and quality control measures in place to ensure consistent performance. This product is designed to meet the stringent requirements of industrial and commercial applications, providing designers with a dependable voltage reference source.
