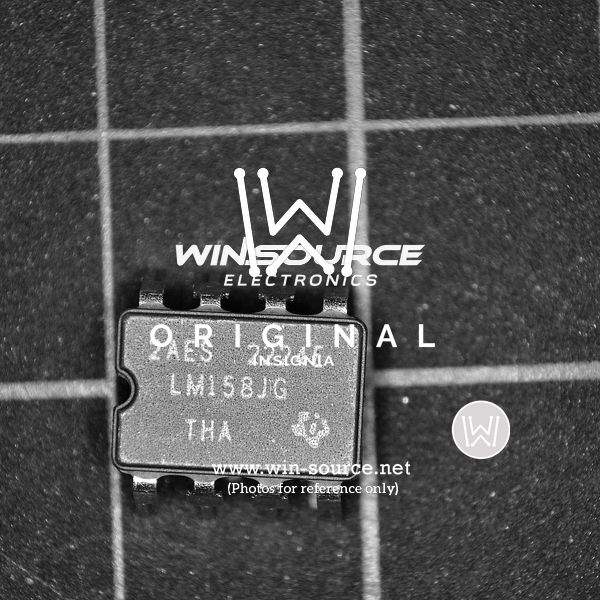

LM158JG real image LM158JG real image976 LM158JG real image977 LM158JG Real Image1 LM158JG Real Image2
Same model may have multiple batches, images only for reference.
LM158JG real image LM158JG real image976 LM158JG real image977 LM158JG Real Image1 LM158JG Real Image2
LM158JG real image LM158JG real image976 LM158JG real image977 LM158JG Real Image1 LM158JG Real Image2
Same model may have multiple batches, images only for reference.

LM158JG

Part No LM158JG
Manufacturer Texas Instruments
Catalog HOT - SALES and EOL Components (L)
Description DUAL OPERATIONAL AMPLIFIERS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Technology Bipolar
Input Offset Voltage 5(mV)
Mounting Through Hole
Operating Temp Range -55C to 125C
Package Type CDIP
Packaging Rail/Tube
Pin Count 8
Number of Elements 2
Common Mode Rejection Ratio 70(dB)
Operating Temperature Classification Military
Input Bias Current 150(nA)
Slew Rate 0.3(V/us)
Power Supply Requirement Single/Dual
Dual Supply Voltage (Min) ±1.5(V)
Rail/Rail I/O Type No
Shut Down Feature No
Rad Hardened No
Single Supply Voltage (Min) 3(V)
Single Supply Voltage (Max) 32(V)
Single Supply Voltage (Typ) 5/9/12/15/18/24/28(V)
Dual Supply Voltage (Max) ±16(V)
Voltage Gain in dB 100(dB)
Unity Gain Bandwidth Product 0.7MHz
Win Source Part Number 086629-LM158JG
Family Name LM158
Introduction Date May 13, 2008
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM158JG CAD Model

Description

The LM158JG is a high-performance, dual operational amplifier from Texas Instruments, a leading global semiconductor company.

  • Gain Bandwidth: 1 MHz
  • Slew Rate: 0.5 V/µs
  • Power Supply Voltages: ±2V to ±20V
  • Input Bias Current: 45 nA
  • Input Impedance: 1 MΩ
  • Common-Mode Rejection Ratio (CMRR): 70 dB
  • Power Supply Rejection Ratio (PSRR): 70 dB
  • Operating Temperature Range: -55°C to +125°C
