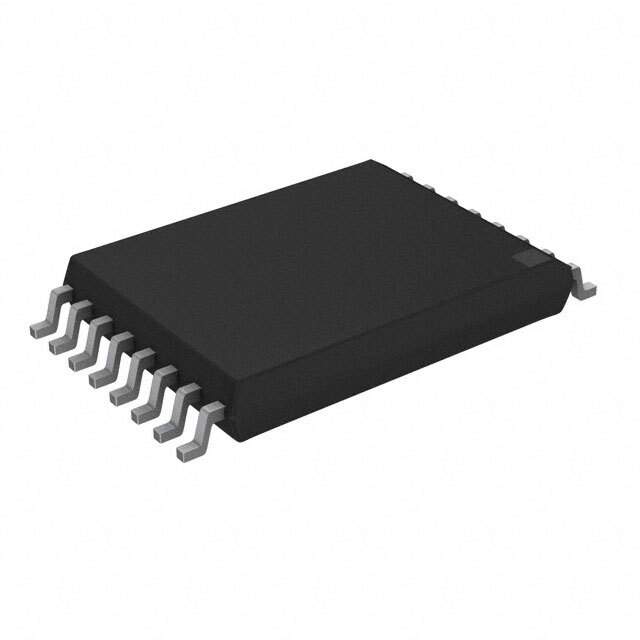

The ISO7821LLSDWWR is a high-performance, dual-channel digital isolator from Texas Instruments (TI) designed to provide robust signal isolation in a wide range of industrial and telecommunication applications. This advanced component is part of TI's ISO7821 series and is known for its exceptional isolation capabilities, which are crucial for protecting sensitive electronic circuits from high voltages and noise.

Key Features

• High Isolation Voltage: The ISO7821LLSDWWR offers an isolation voltage of 5000 Vrms for 1 minute per UL 1577, ensuring reliable operation in environments with high voltage transients.
• Low Propagation Delay: With a typical propagation delay of just 11 ns, this isolator facilitates rapid signal transmission, which is essential for high-speed digital communication.
• Robust Electromagnetic Compatibility (EMC): The device features low emissions and high immunity to electromagnetic interference, minimizing signal corruption.
• Wide Temperature Range: It operates effectively across a broad temperature range from -55°C to +125°C, making it suitable for extreme conditions.

Applications

The ISO7821LLSDWWR is versatile and can be used in various applications, including but not limited to:

• Industrial automation and control systems
• Motor drives
• Power inverters/converters
• Medical equipment
• Isolated data communication in telecom and datacom equipment

Technical Specifications

This digital isolator has a low-power design and operates with a supply voltage range from 2.25 V to 5.5 V. It features two forward and two reverse-direction channels, with integrated noise filters on the inputs to combat transient noises and glitches. The ISO7821LLSDWWR comes in a compact 16-pin SOIC wide-body package, providing a space-saving solution without compromising performance.

Quality and Reliability

TI is renowned for its commitment to quality, and the ISO7821LLSDWWR is no exception. It is designed to meet stringent industry standards, ensuring long-term reliability for critical applications. The device also comes with TI's support and extensive resources, including technical documentation, design tools, and customer support to facilitate seamless integration into your projects.
