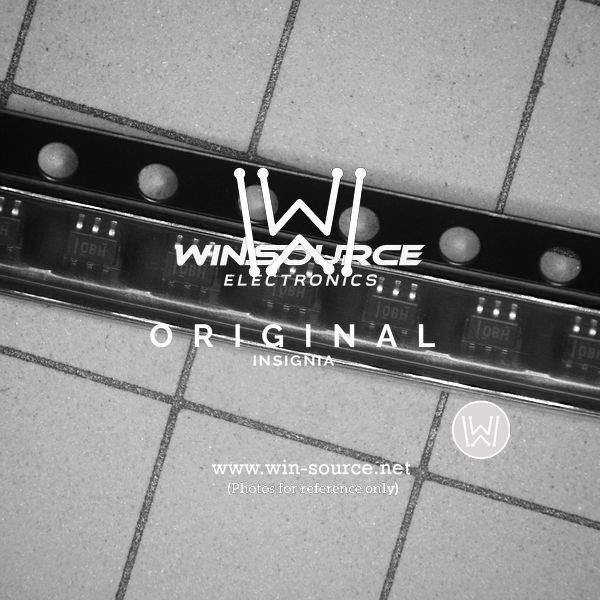

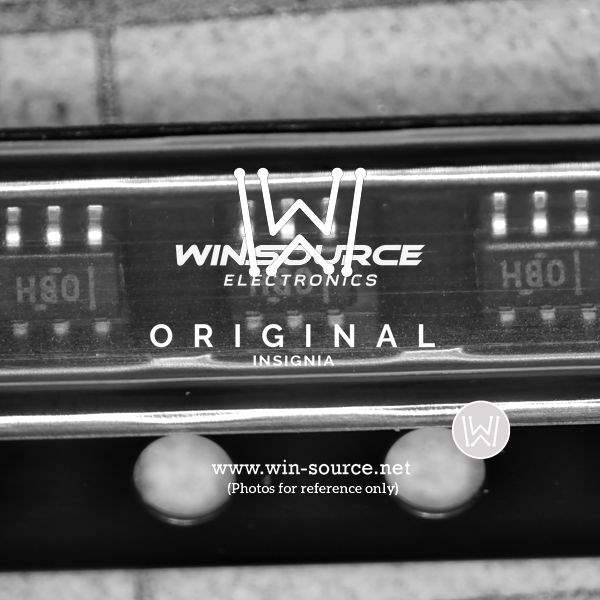

INA199A2DCKR Real Image INA199A2DCKR real image119 INA199A2DCKR Real Image1 INA199A2DCKR Real Image2
Same model may have multiple batches, images only for reference.
INA199A2DCKR Real Image INA199A2DCKR real image119 INA199A2DCKR Real Image1 INA199A2DCKR Real Image2
INA199A2DCKR Real Image INA199A2DCKR real image119 INA199A2DCKR Real Image1 INA199A2DCKR Real Image2
Same model may have multiple batches, images only for reference.

INA199A2DCKR

Part No INA199A2DCKR
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP CURR SENSE 14KHZ SC70-6
Datasheet
INA199A2DCKR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type Current Sense
Number of Circuits 1
Slew Rate 0.4 V/μs
Gain Bandwidth Product (GBP) 14kHz
Current - Input Bias 28μA
Voltage - Input Offset 5μV
Operating Supply Current 65μA
Supply Voltage - Operating 2.7 V to 26 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package SC-70-6
Win Source Part Number 017270-INA199A2DCKR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian INA199A2DCKR CAD Model

Description

The INA199A2DCKR from Texas Instruments is a high-performance, low-side voltage output current shunt monitor that is designed to provide precise current measurement solutions.

  • Common-Mode Voltages: -0.3V to 26V
  • Supply Range: 2.7V to 26V
  • Accuracy: 1% over the entire temperature range
  • Package: Compact SC-70
  • Bandwidth: Up to 500 kHz
