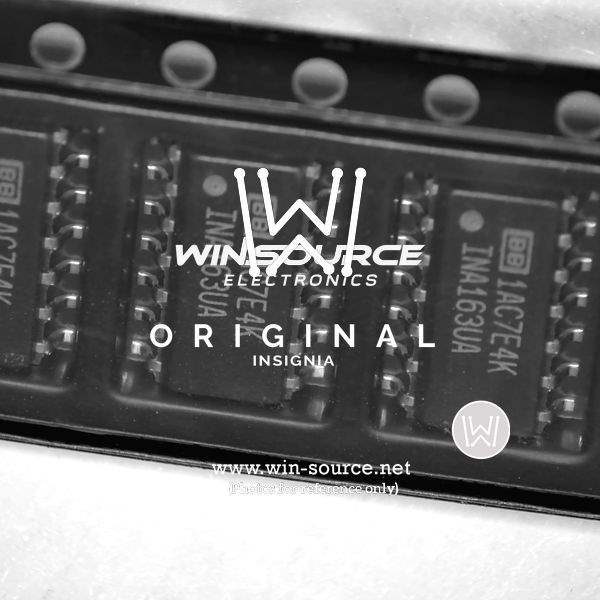

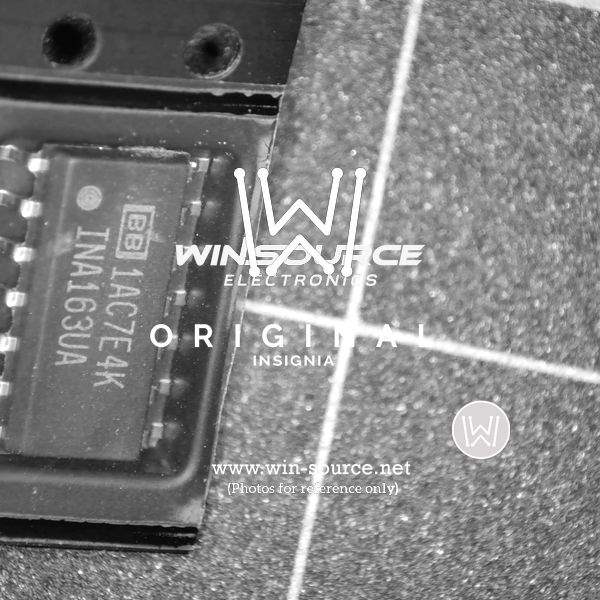

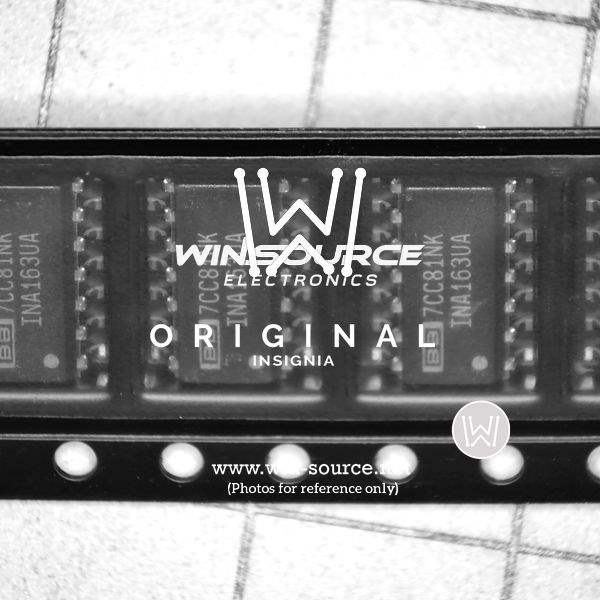

INA163UA Real Image INA163UA Real Image1 INA163UA Real Image2 INA163UA Real Image3
Same model may have multiple batches, images only for reference.
INA163UA Real Image INA163UA Real Image1 INA163UA Real Image2 INA163UA Real Image3
INA163UA Real Image INA163UA Real Image1 INA163UA Real Image2 INA163UA Real Image3
Same model may have multiple batches, images only for reference.

INA163UA

Part No INA163UA
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP INSTR 800KHZ 14SOIC
Datasheet
INA163UA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Amplifier Type Instrumentation
Number of Circuits 1
Slew Rate 15 V/μs
-3db Bandwidth 800kHz
Current - Input Bias 2μA
Voltage - Input Offset 50μV
Operating Supply Current 10mA
Channel Output Current 60mA
Supply Voltage - Operating ±4.5 V to 18 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-SOIC
Win Source Part Number 082525-INA163UA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Signal Processing, Industrial, Sensing & Instrumentation, Medical
Ultra Librarian 3D Model Ultra Librarian INA163UA CAD Model

Description

The INA163UA from Texas Instruments is a high-performance, precision instrumentation amplifier.

  • Gain Bandwidth: 1.6MHz.
  • Slew Rate: 2.5V/us.
  • Supply Range: ±2.25V to ±18V.
  • Input Bias Current: 25nA.
  • Offset Voltage: 250uV.
  • Offset Drift: 2uV/°C.
  • Operating Temperature: -40°C to +85°C.
  • Package: compact, 14-pin SOIC.
  • Gain Settings: 1 to 1000.
