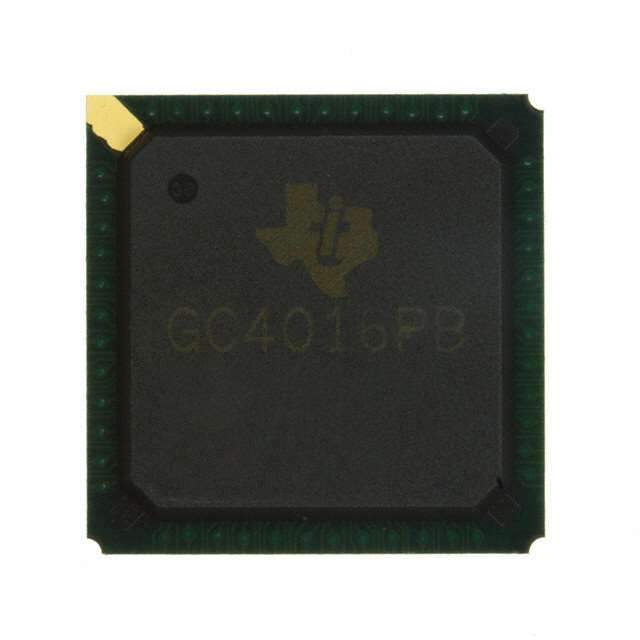

The GC4016-PBZ from Texas Instruments is a versatile and high-performance quad digital downconverter (DDC) designed to cater to a broad range of communication applications. This product is equipped with the capability to process four independent channels simultaneously, making it an ideal choice for systems that require multi-channel processing such as base stations, software-defined radios, and multi-mode receivers.

Key Features

• Multi-Standard Support: The GC4016-PBZ is capable of handling various modulation standards, making it highly adaptable to different communication protocols.
• Quad Channel Processing: With four independent DDCs, this device can process four separate input signals concurrently, providing efficient utilization of resources and enhanced system throughput.
• Programmable Decimation: The decimation factor is programmable, allowing users to adjust the downconversion rate to suit specific application requirements.
• Integrated NCOs: Each channel includes an integrated Numerically Controlled Oscillator (NCO) for precise frequency translation, which is essential for downconverting the input signal to a lower intermediate frequency or baseband.
• Flexible Input Data Width: The GC4016-PBZ supports a flexible input data width, accommodating various input signal formats and ensuring compatibility with a wide range of ADCs.

Applications

The GC4016-PBZ is suited for a variety of applications that require reliable and efficient digital downconversion, including:

• Wireless Communication Infrastructure
• Software-Defined Radios
• Multi-Mode, Multi-Band Receivers
• Signal Intelligence and Surveillance Systems
• Test and Measurement Equipment

Technical Specifications

The GC4016-PBZ operates over a wide frequency range and offers a dynamic range that meets the demands of complex communication systems. It is available in a PBGA (Plastic Ball Grid Array) package, ensuring a compact footprint and ease of integration into various system designs.

For detailed technical specifications, datasheets, and support resources, customers are encouraged to visit the Texas Instruments website or contact their technical support team.
