The DRV8886RHRR from Texas Instruments is a highly integrated motor driver that is designed to efficiently drive stepper motors and brushed DC motors. Its compact form factor and robust feature set make it an ideal choice for a wide range of applications, including office automation machines, gaming machines, factory automation, and robotics.

Key Features

• Motor Type Support: The device is capable of driving a bipolar stepper motor or two brushed DC motors.
• Output Current: It provides up to 1.5 A continuous output current per channel or 2 A peak output current per channel, enabling it to power a range of small to medium-sized motors.
• Operating Voltage Range: The DRV8886RHRR operates over a wide power supply range from 4.5 V to 38 V, which allows it to be used in diverse systems without the need for additional voltage regulation.
• Integrated Protection Features: The device includes multiple protection features such as overcurrent, thermal shutdown, and under-voltage lockout (UVLO), ensuring reliable operation and longevity of the motor driver.
• Control Interface: It supports both PHASE/ENABLE and IN/IN control interfaces, providing flexibility in control schemes for different application requirements.
• Power Efficiency: With advanced features such as low RDS(ON) MOSFETs and an adaptive blanking time for reduced switching losses, the DRV8886RHRR ensures efficient operation, minimizing heat generation and power consumption.

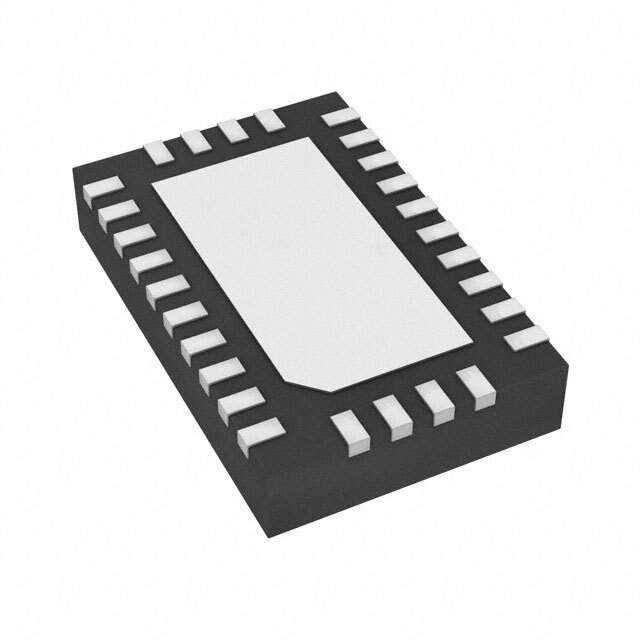

• Package: The motor driver comes in a thermally efficient 24-pin VQFN package with a small footprint, suitable for space-constrained applications.

Applications

The DRV8886RHRR is versatile and can be used in a variety of applications. Its precision and power efficiency make it an excellent choice for applications that require accurate control of motor speed and position. Some common applications include:

• Automated Guided Vehicles (AGVs)
• Textile and sewing machines
• 3D printers and CNC machines
• Robotic vacuums and drones
• Medical devices and laboratory automation equipment

With its advanced features and comprehensive protection, the DRV8886RHRR motor driver from Texas Instruments stands as a reliable and efficient solution for driving a wide range of motor types in both industrial and consumer applications.
