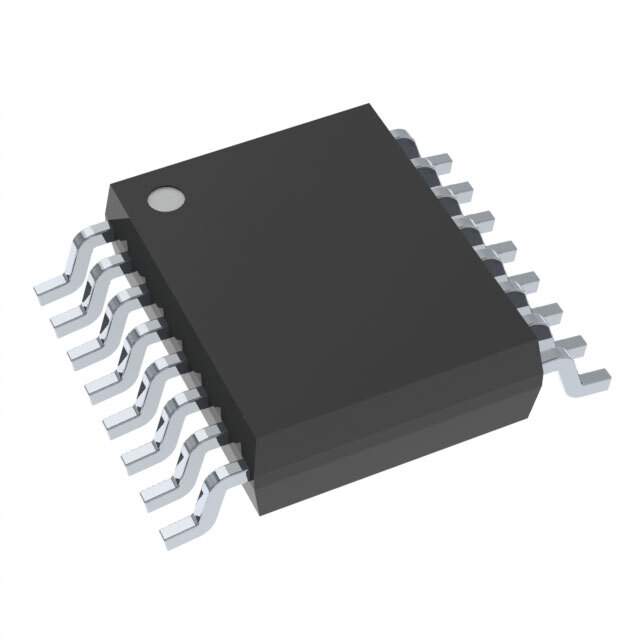

Product Overview: DRV8876QPWPRQ1 - Texas Instruments

The DRV8876QPWPRQ1 from Texas Instruments is a highly integrated motor driver solution designed for use in automotive applications. This H-bridge driver is capable of driving one brushed DC motor or one winding of a stepper motor, as well as other actuators like solenoids. With an operating voltage range from 4.5V to 38V, it is versatile enough to handle a wide range of automotive applications.

Key Features

• Wide Voltage Range: The device operates from a supply voltage of 4.5V to 38V, accommodating the electrical system requirements of most vehicles.
• High Output Drive Capability: The DRV8876QPWPRQ1 can deliver up to 3.5A of continuous output current, making it suitable for driving a variety of motors and actuators.
• Integrated Protection Features: It includes several protection features such as overcurrent, short-circuit, under-voltage lockout, and thermal shutdown to ensure reliable operation under harsh automotive conditions.
• PH/EN Interface: The device supports a simple PH/EN (Phase/Enable) interface for easy control of the motor direction and speed.
• Diagnostic Reporting: An integrated fault diagnostic function provides feedback on the status of the driver, which is essential for safety-critical applications.
• Automotive Grade: The DRV8876QPWPRQ1 is AEC-Q100 qualified, meaning it meets the stringent quality standards required for automotive electronics.

Applications

The robust design and feature set of the DRV8876QPWPRQ1 make it an ideal choice for a variety of automotive applications, such as:

• Power seats and windows
• Windshield wipers
• Mirror adjustment and folding systems
• Valve control
• Small pumps and fans

In summary, the DRV8876QPWPRQ1 from Texas Instruments is a versatile and reliable motor driver solution tailored for the demanding needs of the automotive industry. Its comprehensive protection features, high output drive capability, and wide operating voltage range make it an excellent choice for designers looking to create robust and efficient motor control systems in their automotive applications.
