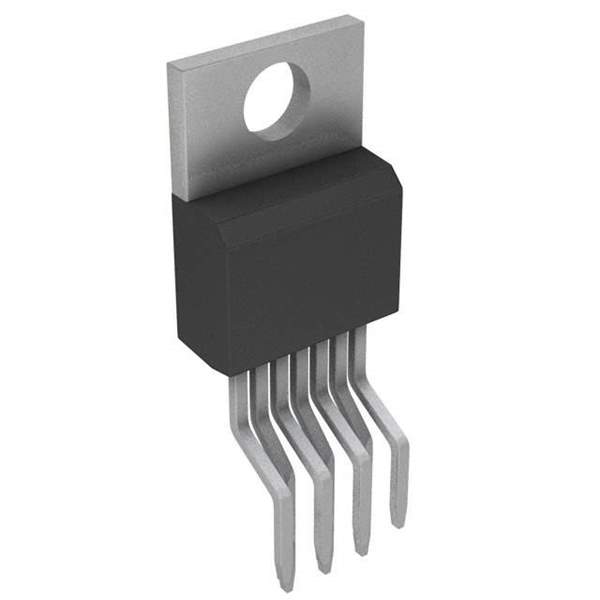

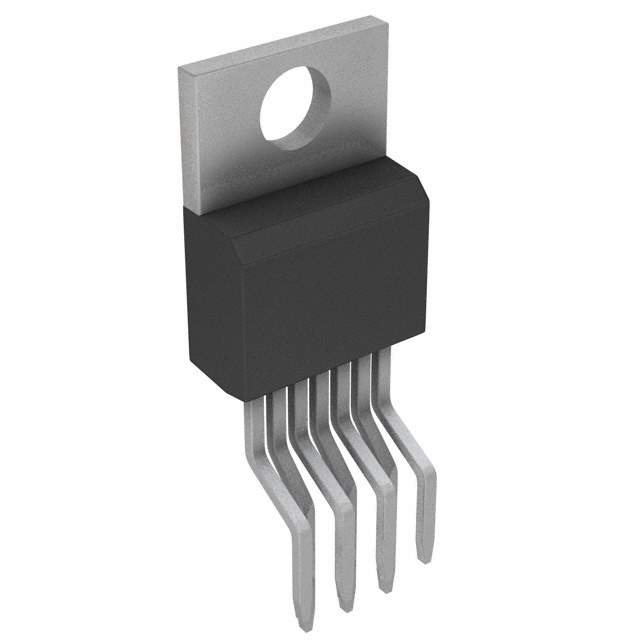

The DRV102TG3 is a versatile, high-power PWM (Pulse Width Modulation) motor driver from Texas Instruments designed to efficiently control solenoids, valves, and other inductive loads in a wide range of industrial and commercial applications. This robust device simplifies design and reduces component count while offering a high level of performance.

Key Features

• Integrated Output Transistor: The DRV102TG3 includes a built-in power output stage capable of output currents up to 2.3A, allowing it to directly drive a variety of inductive loads.
• Wide Supply Voltage Range: This motor driver operates over a supply voltage range from 9V to 60V, making it suitable for a broad array of power systems.
• Adjustable PWM: Users can adjust the duty cycle from 0% to 100% to control the speed of the motor or the position of a solenoid with a simple external potentiometer or voltage signal.
• Thermal Shutdown: The device includes thermal shutdown protection, which prevents damage due to overheating, enhancing the reliability and longevity of the motor driver.
• Diagnostic Features: The DRV102TG3 provides LED status indicators for easy troubleshooting and system diagnostics.
• Flexible Control Inputs: It accepts both analog and digital inputs, offering flexibility in control methods.

Applications

The DRV102TG3 is ideal for a diverse set of applications, including:

• Proportional solenoid control
• Valve actuation
• Positioning systems
• Industrial process control
• Robotics

Design Advantages

Engineers favor the DRV102TG3 for its ease of integration and high performance. Its wide voltage range and high current capability allow it to fit into many different systems without the need for additional power components. The adjustable PWM provides precise control over the load, essential for applications requiring accuracy and repeatability. Furthermore, the built-in diagnostic features and thermal protection contribute to a reliable and robust design, minimizing downtime and maintenance costs.
