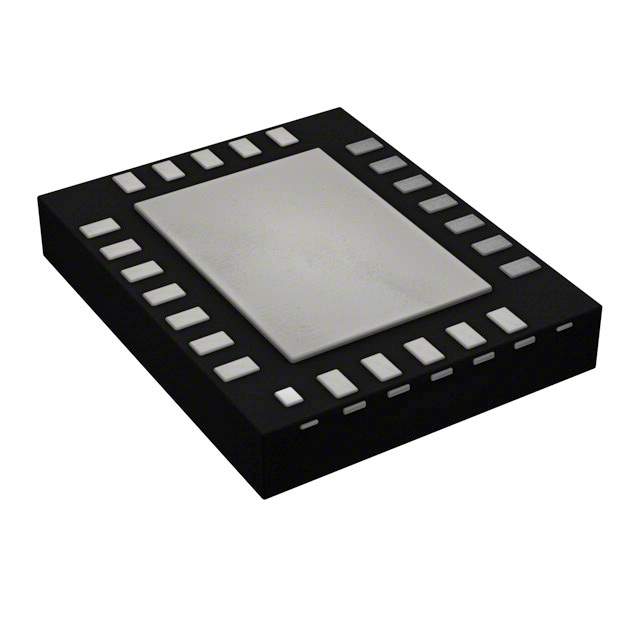

Texas Instruments DP83825IRMQT Ethernet PHY Transceiver

The DP83825IRMQT from Texas Instruments is a robust, low-power, fully-featured Physical Layer transceiver with a variety of features designed to implement 10BASE-Te, 100BASE-TX Ethernet protocols. This compact device is ideal for applications where space and power are at a premium, making it a perfect choice for industrial automation, embedded networking, and automotive systems.

With an emphasis on flexibility and reliability, the DP83825IRMQT supports both half and full-duplex communication, as well as auto-negotiation to automatically select the best possible speed and communication mode. The device is designed to operate over a single 3.3V power supply, with an integrated voltage regulator to ease power supply design.

One of the key features of the DP83825IRMQT is its low power consumption, which is critical for battery-powered and power-sensitive applications. Additionally, the device includes energy-efficient Ethernet (EEE) capabilities, which further reduce power usage during periods of low data activity.

The DP83825IRMQT is also known for its robust performance, featuring a cable diagnostic feature that helps to identify potential cabling issues, thereby reducing the time required for troubleshooting. It also supports Auto-MDIX, meaning the transceiver automatically detects and configures the MDI/MDIX configuration to directly connect to another device, simplifying network setup and maintenance.

For design flexibility, the DP83825IRMQT offers multiple interface options including MII, RMII, and RGMII, allowing for easy integration with a variety of microcontrollers and processors. It also includes an integrated 1.8V LDO, which can be disabled if an external power supply is preferred.

Overall, the Texas Instruments DP83825IRMQT Ethernet PHY Transceiver is a highly integrated, feature-rich solution that provides reliable and efficient network connectivity for a wide array of electronic devices and systems.
