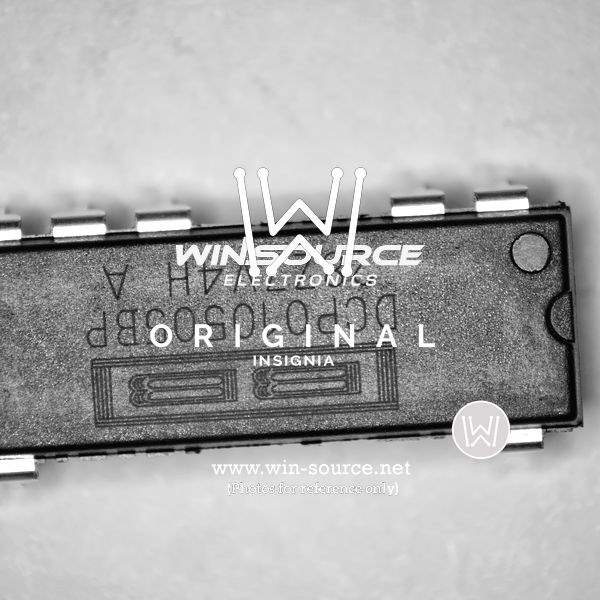

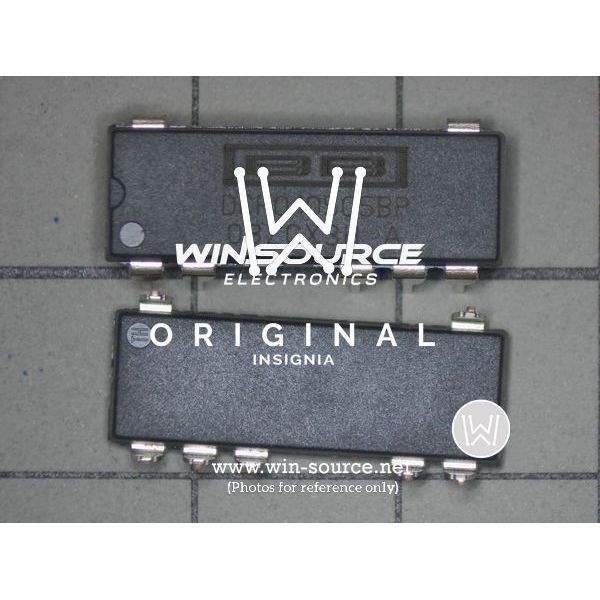

DCP010505BP Real Image DCP010505BP real image DCP010505BP label picture DCP010505BP Real Image
Same model may have multiple batches, images only for reference.
DCP010505BP Real Image DCP010505BP real image DCP010505BP label picture DCP010505BP Real Image
DCP010505BP Real Image DCP010505BP real image DCP010505BP label picture DCP010505BP Real Image
Same model may have multiple batches, images only for reference.

DCP010505BP

Part No DCP010505BP
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 1-OUT 5V 0.2A 0.97W 7-Pin PDIP Tube / IC REG ISOLATED 5V 0.2A 7DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series DCP01B
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP SCP
Mounting Style Through Hole
Package 14-DIP (0.300" 7.62mm) (7 Leads)
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 80%
Power (Watts) - Max 100mW
Catalog DCP01B Series
Win Source Part Number 083205-DCP010505BP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial, Test & Measurement
Family Name DCP010505B
Introduction Date October 01, 2005
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DCP010505BP CAD Model

Description

Overview of DCP010505BP

The DCP010505BP is a highly efficient isolated DC/DC converter designed to ensure optimal performance in various applications. Known for its compact size and reliability, it offers seamless integration with systems requiring efficient power management.

Features and Benefits

  • 5V Output Voltage: Provides stable and consistent power supply for various electronics.
  • Efficiency Up to 75%: Ensures minimal energy wastage, promoting eco-friendly operations.
  • Isolated Output: Enhances safety by providing electrical isolation between input and output.
  • Wide Input Range: Compatible with diverse power sources, ensuring flexibility.
  • Built-in Over-Temperature Protection: Increases the lifespan by preventing damage due to overheating.

Applications

  • Embedded Systems
  • Data Acquisition
  • Telecommunications
  • Industrial Control Systems
  • Medical Equipment
