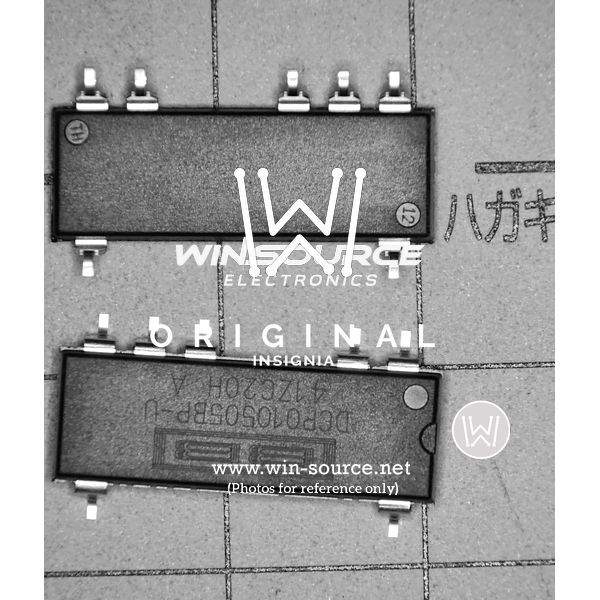

DCP010505BP-U Real Image DCP010505BP-U real image3224 DCP010505BP-U Real Image1 DCP010505BP-U Real Image2 DCP010505BP-U Real Image3 DCP010505BP-U Real Image4
Same model may have multiple batches, images only for reference.
DCP010505BP-U Real Image DCP010505BP-U real image3224 DCP010505BP-U Real Image1 DCP010505BP-U Real Image2 DCP010505BP-U Real Image3 DCP010505BP-U Real Image4
DCP010505BP-U Real Image DCP010505BP-U real image3224 DCP010505BP-U Real Image1 DCP010505BP-U Real Image2 DCP010505BP-U Real Image3 DCP010505BP-U Real Image4
Same model may have multiple batches, images only for reference.

DCP010505BP-U

Part No DCP010505BP-U
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 1-OUT 5V 0.2A 0.97W 7-Pin SOP Tube / IC REG ISOLATED 5V 0.2A 7SOP
Datasheet
DCP010505BP-U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP01B
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Mounting Style SMD/SMT
Package 14-SMD Module (7 Leads), Gull Wing
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 80%
Power (Watts) - Max 100mW
Win Source Part Number 013843-DCP010505BP-U
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Signal Processing, Automation & Process Control, Sensing & Instrumentation, Test & Measurement, Industrial
Family Name DCP010505B
Introduction Date October 01, 2005
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DCP010505BP-U CAD Model

Description

Overview of DCP010505BP-U

The DCP010505BP-U offers advanced functionality similar to its counterparts, with a focus on user-centric design. Ideal for modern electronic systems, this DC/DC converter empowers engineers with reliable and consistent power solutions.

Features and Benefits

  • 5V Output Voltage: Ensures a stable power delivery for sensitive electronic components.
  • Compact Footprint: Facilitates easy integration into space-constrained applications.
  • High Efficiency Levels: Achieves up to 75% efficiency, reducing power losses.
  • Electrical Isolation: Provides protection against electrical faults and noise interference.
  • Robust Construction: Designed to withstand demanding environmental conditions.

Applications

  • Portable Devices
  • Remote Sensing Systems
  • Communications Infrastructure
  • Signal Processing
  • Instrumentation
