Texas Instruments DAC8164IBPWG4 Digital-to-Analog Converter

The DAC8164IBPWG4 is a high-performance, quad-channel digital-to-analog converter (DAC) designed and manufactured by Texas Instruments, a leading name in the semiconductor industry. This precision DAC is an ideal choice for a wide range of applications that require accurate and reliable digital-to-analog conversion.

Each of the four channels of the DAC8164IBPWG4 boasts a 14-bit resolution, providing fine granularity and precise control over analog outputs. This level of resolution is suitable for applications such as process control, automated test equipment, and data acquisition systems where accuracy is paramount.

One of the key features of the DAC8164IBPWG4 is its low power consumption, which makes it an excellent choice for battery-powered or energy-sensitive applications. The device operates from a single supply voltage ranging from 2.7V to 5.5V, offering flexibility in various system power designs.

The DAC8164IBPWG4 is also equipped with a versatile interface that supports both SPI and MICROWIRE communication protocols. This interface ensures easy integration into a variety of microcontroller or microprocessor-based systems. Additionally, the device includes a power-on reset function that ensures the DAC outputs are initialized to a known state when power is applied, increasing system reliability.

Each DAC channel has its own programmable gain amplifier, which can be configured to provide full-scale output voltages of 2.5V, 2.048V, or 4.096V, without the need for an external reference voltage. This built-in flexibility allows the device to adapt to the needs of the specific application it is being used in.

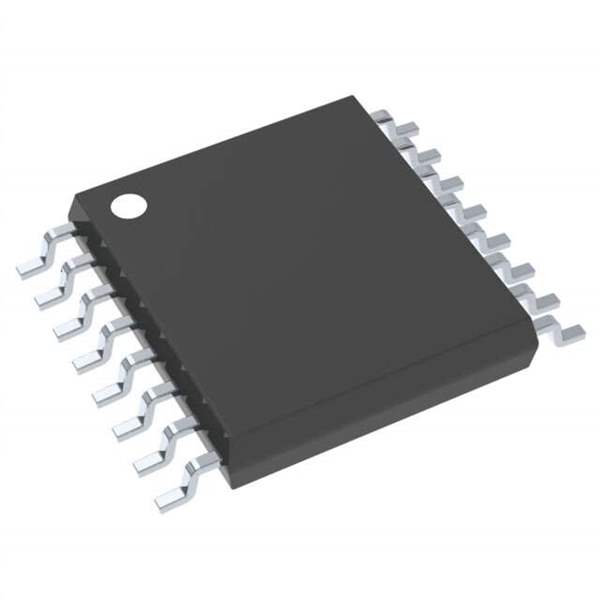

The DAC8164IBPWG4 comes in a compact TSSOP-16 package, making it suitable for space-constrained applications. Its industrial temperature range of -40°C to +105°C ensures reliable operation even in harsh environmental conditions.

Overall, the Texas Instruments DAC8164IBPWG4 is a robust and versatile DAC solution that delivers high accuracy, low power consumption, and ease of integration, making it a top choice for engineers and designers across various industries.
