The DAC7724U/1K from Texas Instruments is a high-performance, 12-bit, quad-channel digital-to-analog converter (DAC) designed to deliver precision and flexibility in a range of demanding applications. This advanced DAC is ideal for industrial automation, process control, and other applications requiring high-resolution analog output.

With an integrated precision voltage reference, the DAC7724U/1K ensures accuracy and stability over its entire operating range. The device operates from a single 5V power supply, which simplifies the power supply design and reduces the overall power consumption. The DAC7724U/1K features a flexible serial interface that is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards, making it easy to integrate into a variety of system designs.

Each of the four DAC channels can be individually programmed with a 12-bit data word, allowing for fine control of the analog output. The output voltage range is programmable via internal control registers, providing additional versatility for different application requirements. The device also includes a power-on reset circuit that ensures the DAC output powers up to zero volts and remains there until a valid write takes place.

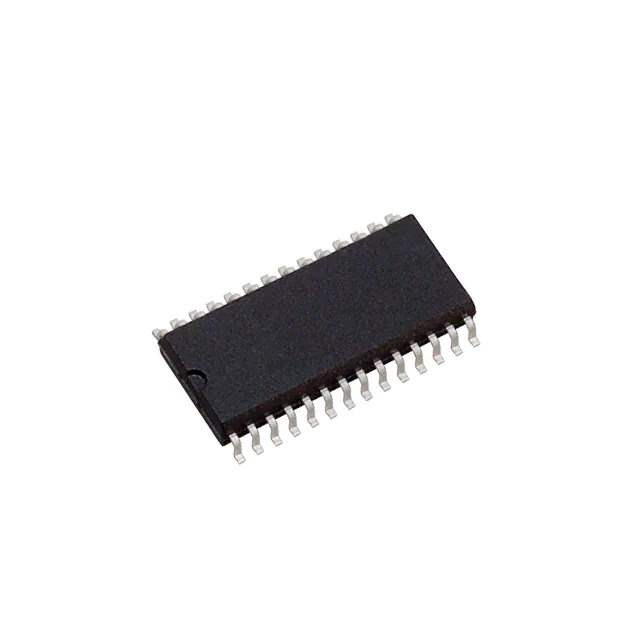

The DAC7724U/1K also features a clear and concise layout that aids in easy implementation. Its small form factor—a 28-lead SSOP (Shrink Small Outline Package)—makes it a space-saving choice for compact PCB designs. Additionally, the device boasts excellent thermal performance, which is critical for maintaining precision in temperature-sensitive applications.

In terms of reliability, the DAC7724U/1K is specified over the extended industrial temperature range of -40°C to +85°C, ensuring consistent performance in harsh environments. With its combination of high resolution, quad-channel output, and robust design, the Texas Instruments DAC7724U/1K is a versatile solution for any system requiring high-quality digital-to-analog conversion.
