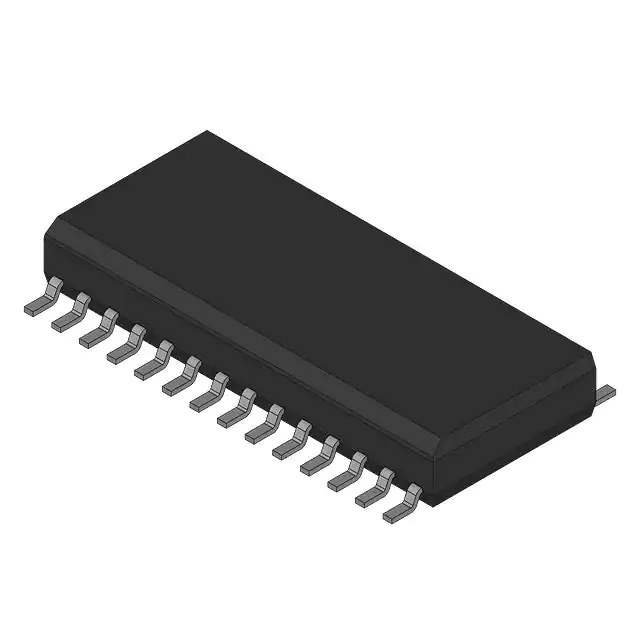

The DAC712U-1 from Texas Instruments is a precision 16-bit digital-to-analog converter (DAC) designed to offer exceptional accuracy and stability in a wide range of applications. This high-performance DAC features a monolithic construction with on-chip laser-trimmed resistors that ensure excellent long-term stability and reliability.

Key Features

• Resolution: 16-bit digital-to-analog conversion provides high resolution for precise applications.
• Interface: The DAC712U-1 is equipped with a parallel data interface for easy integration with microprocessors and digital systems.
• Settling Time: Fast settling time allows for quick updates and responsive system performance.
• Output: The device offers a bipolar output range, which can be configured for various applications.
• Reference: An external reference input allows for flexibility in setting the full-scale output voltage.
• Power Supply: Compatible with a +15V power supply, the DAC712U-1 is designed for systems that require a high-voltage supply.
• Package: Available in a 28-pin plastic DIP (PDIP) package, it is suitable for through-hole mounting, making it easy to integrate into a variety of circuit boards.

Applications

The DAC712U-1 is ideal for a range of precise analog output applications, such as:

• Industrial control systems
• Automated test equipment
• Data acquisition systems
• Process control
• Medical instrumentation

Reliability and Support

As with all Texas Instruments products, the DAC712U-1 is backed by a robust technical support network and comprehensive documentation. The device's reliability is further enhanced by its wide operating temperature range, making it suitable for demanding environments.

For engineers and designers looking for a high-quality DAC that combines precision with versatility, the DAC712U-1 from Texas Instruments is an excellent choice. Its combination of features ensures that it can meet the needs of even the most demanding analog output tasks.
