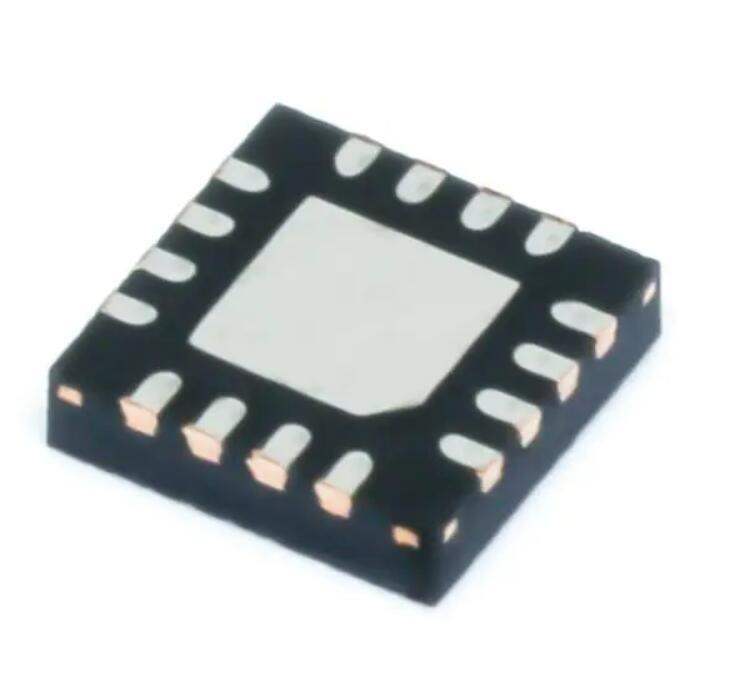

Introducing the DAC63001RTER from Texas Instruments

The DAC63001RTER is a cutting-edge digital-to-analog converter (DAC) designed and manufactured by the renowned Texas Instruments. This precision DAC is a part of TI's extensive line of high-performance integrated circuits that cater to a wide range of applications, from industrial to consumer electronics.

At the core of the DAC63001RTER is its 6-bit resolution, which provides users with the ability to achieve fine-grained analog output levels. This level of precision makes it an ideal choice for applications requiring accurate signal conversion, such as precision instrumentation, data acquisition systems, and closed-loop control systems.

One of the standout features of this product is its ultra-small footprint. Housed in a compact WSON-6 package, it measures just 2.00 mm x 2.10 mm, making it perfect for space-constrained applications. Despite its small size, the DAC63001RTER does not compromise on performance, offering a settling time of just 5 µs, which ensures quick response times in dynamic systems.

The device operates over a wide supply range of 2.7 V to 5.5 V, providing flexibility in various power environments. Additionally, it boasts an impressive temperature range of -40°C to +125°C, ensuring reliable operation in extreme conditions.

Interfacing with the DAC63001RTER is straightforward thanks to its SPI-compatible serial interface, which allows for easy connection to microcontrollers and other digital systems. This interface also supports daisy-chaining multiple devices, which is beneficial in complex systems requiring multiple DACs.

For designers and engineers looking to optimize their systems, the DAC63001RTER includes an internal precision reference that minimizes the need for external components and simplifies circuit design. Furthermore, the device features a power-on reset to zero-scale or mid-scale, depending on the user's preference, which provides additional control during initialization.

In summary, the DAC63001RTER from Texas Instruments is a highly versatile and reliable DAC solution that offers precision performance in a tiny package. Whether for industrial control, portable devices, or any application requiring a high-quality analog output, this DAC is sure to meet the demands of today's innovative electronic designs.
