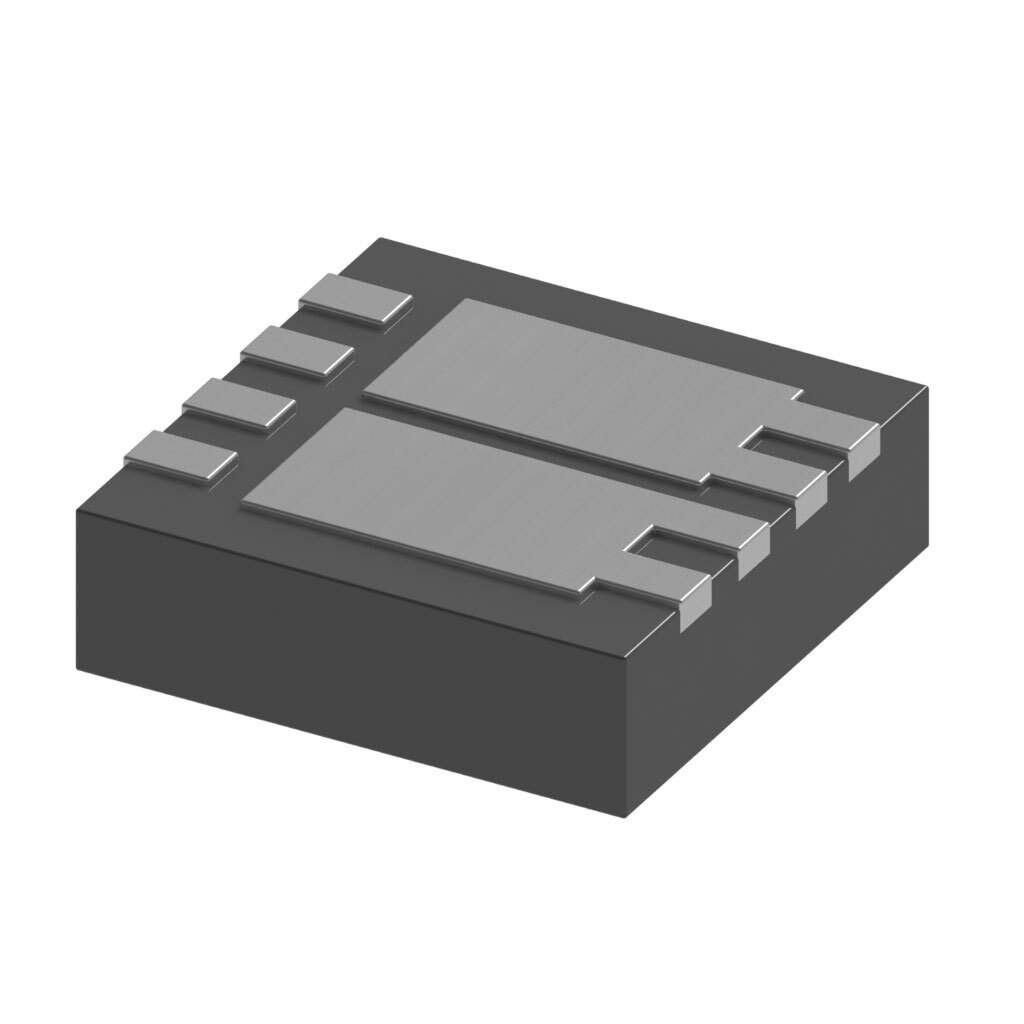

CSD87503Q3E

Part No CSD87503Q3E
Manufacturer Texas Instruments
Catalog FETs - Arrays
Description MOSFET 2 N-CHANNEL 30V 10A 8SON / 30-V N-Channel NexFET Power MOSFETs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Packaging Reel
FET Type 2 N-Channel (Dual) Common Source
FET Feature Standard
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) at 25°C 10A
Rds On (Maximum) at Id, Vgs 13.5mOhm at 6A, 10V
Vgs(th) (Maximum) at Id 2.1V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 17.4nC at 4.5V
Input Capacitance (Ciss) (Maximum) at Vds 1020pF at 15V
Power - Max 15.6W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 8-PowerVDFN
Supplier Device Package 8-VSON (3.3x3.3)
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806156-CSD87503Q3E
Ultra Librarian 3D Model Ultra Librarian CSD87503Q3E CAD Model

Description

The Texas Instruments CSD87503Q3E is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high performance in compact and energy-efficient applications. This advanced power solution is ideal for a range of electronic devices, offering superior power management and heat dissipation characteristics.

Key Features

  • Low On-Resistance: The CSD87503Q3E boasts an ultra-low on-resistance (RDS(on)) of just 8.7 mΩ at VGS = 10V, ensuring minimal power loss and improved efficiency in operation.
  • High Continuous Drain Current: With a high continuous drain current (ID) of 100A, this MOSFET can handle significant power, making it suitable for demanding applications.
  • Thermal Management: The device features exceptional thermal characteristics, thanks to its Power Block package, which enhances heat dissipation and extends operational life.
  • Compact Form Factor: The CSD87503Q3E comes in a small 3.3mm x 3.3mm package, making it an excellent choice for space-constrained applications without compromising on power or performance.

Applications

The versatility of the CSD87503Q3E allows it to be used in a wide array of applications, including:

  • DC/DC conversion systems
  • Motor drives
  • Power supply modules
  • Computing and server applications
  • Telecommunications equipment

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the CSD87503Q3E is no exception. It is designed to meet the stringent requirements of the industrial and commercial markets, ensuring long-term reliability for critical applications.

Environmental Compliance

Adhering to environmental standards, the CSD87503Q3E is RoHS compliant, reflecting Texas Instruments' dedication to environmentally responsible manufacturing practices.

With its robust design, high efficiency, and compact size, the Texas Instruments CSD87503Q3E N-Channel NexFET™ power MOSFET is an excellent choice for designers looking to optimize power management in their next-generation electronic products.
