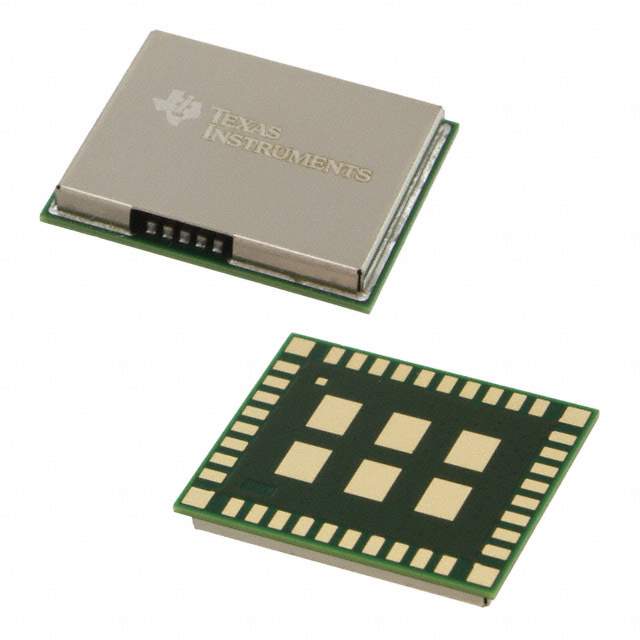

CC3000MODR

Part No CC3000MODR
Manufacturer Texas Instruments
Catalog RF Transceiver Modules
Description Module 802.11b/g 7000Kbps 46-Pin SMD Module T/R / RF TXRX MODULE WIFI CHIP ANT
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
RF Family/Standard WiFi
Protocol 802.11b/g
Modulation CCK, DSSS, OFDM
Frequency 2.4GHz
Data Rate 54Mbps
Power - Output 18.3dBm
Sensitivity -97.5dBm
Serial Interfaces I2C, SPI, UART
Antenna Type Integrated, Chip
Supply Voltage - Operating 1.8 V to 3.6 V
Current - Receiving 92mA
Current - Transmitting 190mA to 260mA
Mounting SMD (SMT)
Temperature Range - Operating -20°C to 70°C
Dimension Module
Win Source Part Number 145145-CC3000MODR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name CC3000MODR
Introduction Date October 01, 2012
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CC3000MODR CAD Model

Description

CC3000MODR

The CC3000MODR is a highly integrated WLAN module that brings the power of Wi-Fi connectivity to various applications. It simplifies the implementation of wireless Internet access on a wide range of MCU-based platforms.

  • Applications/Projects: Wireless sensor networks, RFID scanning, Connected consumer electronics, and Smart metering.
  • Features and Benefits: On-chip network processor, SmartConfig? technology for easy Wi-Fi provisioning, and excellent range with high speed throughput.
  • Additional Details: This module supports industrial standards and features an entirely integrated system including power management.
