The BQ7694002DBTR from Texas Instruments is a sophisticated battery monitor and protector designed specifically for lithium-ion and lithium-polymer battery packs. This advanced integrated circuit (IC) is an essential component for ensuring the safety, longevity, and efficiency of multi-cell battery systems used in a wide range of applications, including portable electronics, electric vehicles, and energy storage systems.

Key Features

• Voltage Monitoring: The device provides high-precision voltage monitoring for up to 15 series-connected battery cells, ensuring that each cell operates within its safe voltage range. This is crucial for maintaining battery health and preventing overcharge or deep discharge situations.
• Temperature Sensing: With integrated temperature sensing capabilities, the BQ7694002DBTR can monitor the battery pack's thermal conditions to prevent operation in hazardous temperature conditions, thus safeguarding the battery system from thermal abuse.
• Balancing and Protection: The IC includes cell balancing features to equalize charge across all cells, enhancing the overall efficiency and lifespan of the battery pack. It also provides a suite of protection features such as overcurrent, short circuit, and overvoltage protection, which are critical for maintaining the integrity of the battery system.
• Communication Interface: A robust I2C interface allows for communication with a host controller, enabling the exchange of vital battery information and facilitating smart battery management.
• Power Management: The device includes power FET control for charging and discharging, providing efficient power management within the battery system.

Applications

The versatility of the BQ7694002DBTR makes it suitable for a wide array of applications. It is particularly well-suited for:

• Power tools and garden equipment
• Light electric vehicles, e-bikes, and scooters
• Portable medical devices
• Uninterruptible power supplies (UPS)
• Energy storage systems

Product Specifications

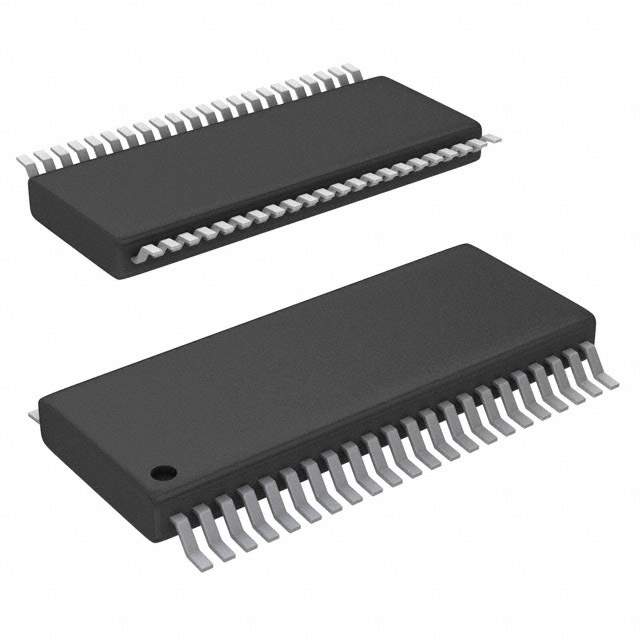

The BQ7694002DBTR comes in a 44-pin TSSOP (DBT) package, offering a compact solution for battery management. It operates over a wide temperature range, making it suitable for diverse environmental conditions. With its robust design and comprehensive feature set, this Texas Instruments product is an ideal choice for advanced battery management solutions.
