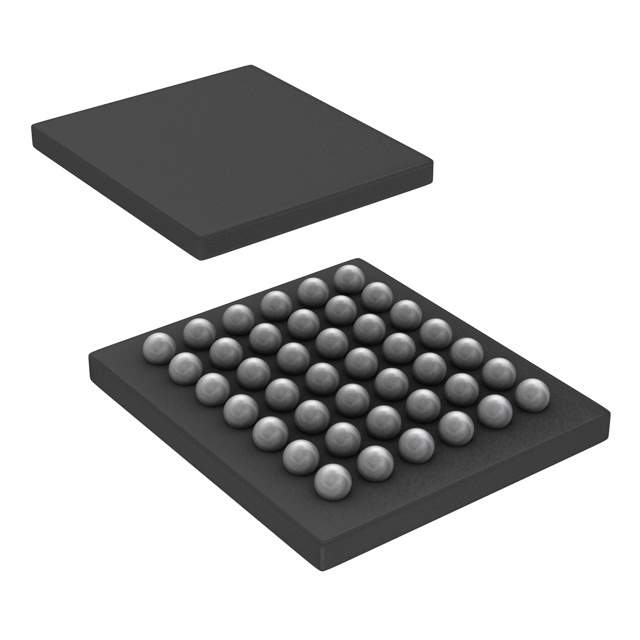

The BQ51020YFPT is a highly integrated wireless receiver IC from Texas Instruments, designed for efficient and convenient wireless power transfer in portable applications. This advanced chip is a member of TI’s wireless power consortium (WPC)-compliant Qi technology solutions, which are at the forefront of the wireless charging revolution.

Key Features

• WPC Qi V1.2 Compliant: This device meets the latest Qi specifications for wireless power transfer, ensuring compatibility with a wide range of Qi-compliant transmitters.
• Integrated Rectifier and LDO: The BQ51020YFPT integrates a synchronous rectifier for AC/DC conversion and a low dropout regulator for stable DC output, minimizing external component count and simplifying design.
• Dynamic Power Limiting (DPL): This feature enables operation with a wide range of adapters by adjusting the receiver power to avoid overloading the power supply.
• Foreign Object Detection (FOD): The device includes FOD functionality to prevent power transfer when a metallic foreign object is detected between the transmitter and receiver, ensuring safety and efficiency.

Applications

The BQ51020YFPT is suitable for a variety of applications where wireless charging is desirable. This includes, but is not limited to:

• Smartphones and Tablets
• Handheld Devices
• Wearable Technology
• Medical Devices and Accessories
• Portable Industrial Devices

Technical Specifications

The BQ51020YFPT operates over a wide input voltage range and is optimized for 5-W applications. It also features an I2C interface for communication with a host controller, providing programmable control over various parameters and facilitating intelligent power management.

Design Support

Texas Instruments provides comprehensive design support for the BQ51020YFPT, including evaluation modules, application notes, and a suite of design tools to assist engineers in expediting the development process. With this support, integrating the BQ51020YFPT into your next wireless power project can be both efficient and straightforward.
