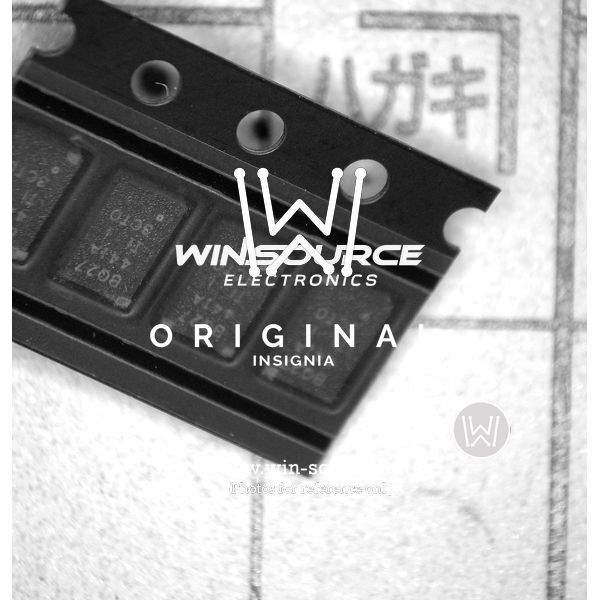

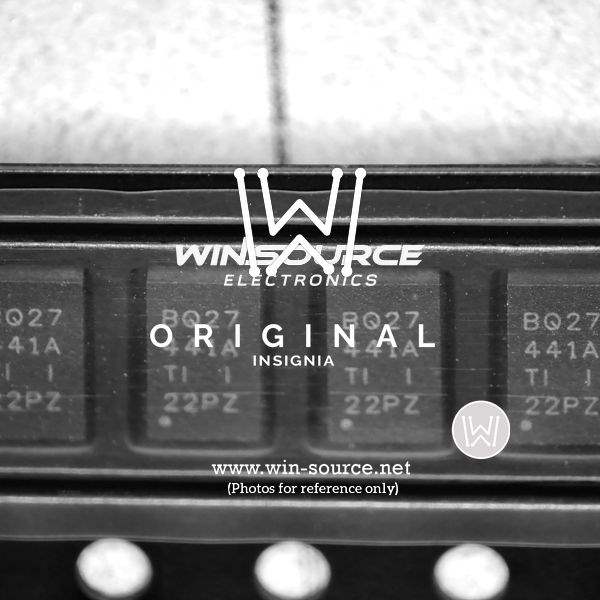

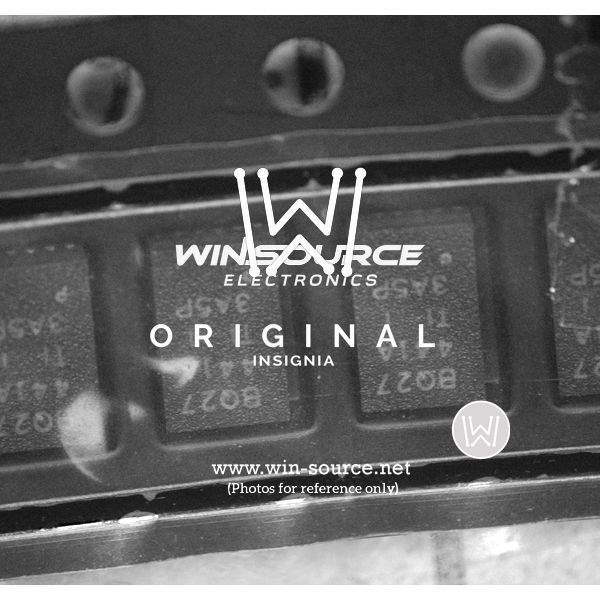

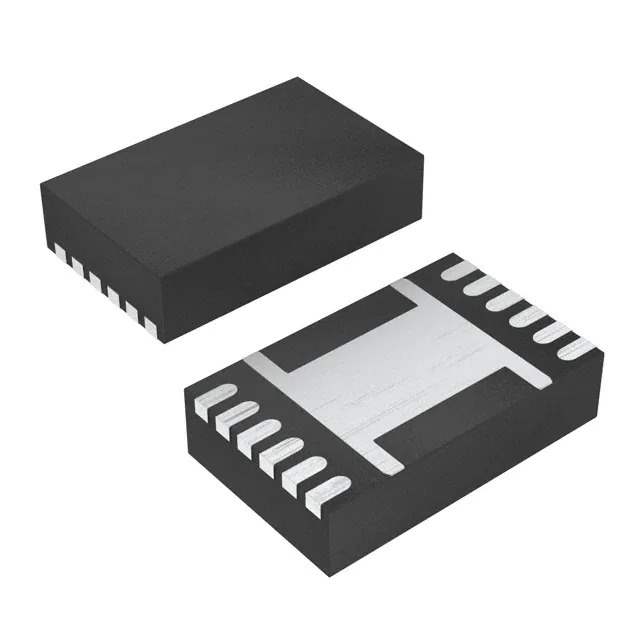

The BQ27411DRZR-G1A from Texas Instruments is a sophisticated, single-cell Li-Ion battery fuel gauge integrated circuit that helps designers enhance the user experience for portable devices. This fuel gauge utilizes the patented Impedance Track™ algorithm for fuel gauging, and provides a rich set of critical battery information to the host system.

Key Features

• Impedance Track™ Technology: Offers accurate battery capacity measurement over a wide range of operating conditions.
• System-Side Gauge: Allows the gauge to be placed on the system side, providing flexibility in design.
• Microcontroller Peripheral: Communicates via an I2C interface and requires minimal external components.
• Low Power Consumption: Designed for energy-sensitive applications, with a typical quiescent current of less than 20μA.
• Single-Cell Support: Specifically tailored for single-cell Li-Ion batteries, a common choice for portable electronics.
• Automatic Cell-Balancing Support: Helps to extend the life of the battery by ensuring each cell is equally charged.
• Self-Discharge Accounting: Accurately predicts the amount of charge remaining in a battery after periods of storage or light use.

Applications

The BQ27411DRZR-G1A is ideal for a range of portable devices where accurate fuel gauging is critical. Key applications include:

• Smartphones
• Tablets
• Wearable Technology
• Wireless Speakers
• Portable Gaming Devices
• Personal Medical Devices
• And many other consumer electronics

Design Support

Texas Instruments provides comprehensive design support for the BQ27411DRZR-G1A, including technical documents, reference designs, and the TI E2E™ support community to help designers integrate this fuel gauge into their projects efficiently.

With its robust feature set and TI's proven expertise in power management solutions, the BQ27411DRZR-G1A is an excellent choice for designers looking to enhance the performance and user experience of their portable devices.
