Product Overview: BQ24314DSJRG4 from Texas Instruments

The BQ24314DSJRG4 is a high-efficiency, integrated battery charge controller from Texas Instruments, designed to cater to the needs of portable applications. This sophisticated device is tailored to manage power for rechargeable lithium-ion or lithium-polymer batteries, making it an ideal choice for a wide range of portable electronic devices such as smartphones, tablets, and digital cameras.

Key Features

• Advanced Charge Management: The BQ24314DSJRG4 offers a comprehensive solution for battery charging, featuring dynamic power-path management which ensures that the system can be powered while simultaneously charging the battery.
• High-Efficiency Operation: With its high-efficiency power conversion capabilities, this charge controller maximizes battery life and minimizes charging time, making it an energy-efficient choice for modern electronics.
• Integrated Safety Features: Safety is paramount in battery management, and this device comes with built-in features such as overvoltage protection, thermal regulation, and a charge safety timer for enhanced protection of both the battery and the device.
• Flexible Power Supply: The BQ24314DSJRG4 supports a wide input voltage range, accommodating various power sources, from USB ports to AC adapters.

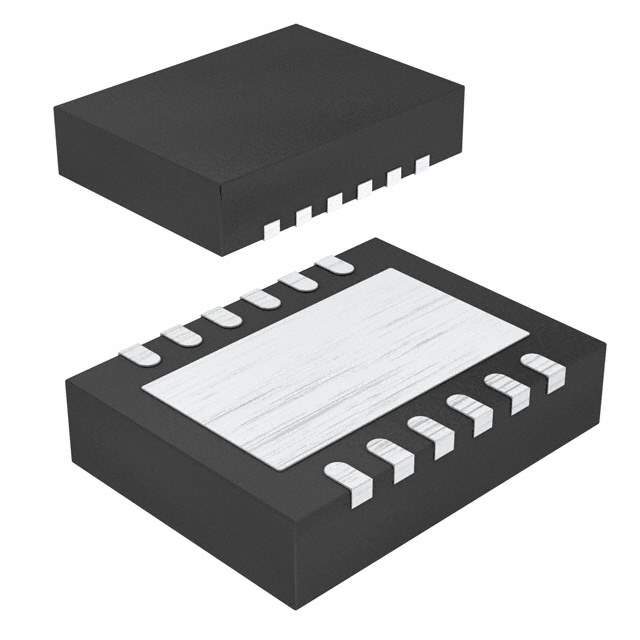

• Compact Design: Housed in a small package, the product is designed to fit into space-constrained applications, allowing for more flexible PCB design and layout.

Technical Specifications

The device operates with an input voltage range of 4.35 V to 26 V, which is suitable for USB and adapter power sources. It has a programmable charge current up to 1.5 A, and the charge voltage is fixed at 4.2 V per cell, which is the standard for lithium-ion cells. The BQ24314DSJRG4 also features an I2C interface for programming and charge status reporting, making it a versatile and user-friendly option for designers and engineers.

Applications

Thanks to its versatility and high performance, the BQ24314DSJRG4 is well-suited for a variety of applications. Whether it is for personal electronics, portable medical devices, or any other battery-powered application, this charge controller provides a reliable solution for power management and extends the usability of portable devices.

Overall, the BQ24314DSJRG4 from Texas Instruments stands out as a high-quality, efficient, and safe charging solution for today's portable electronics market.
