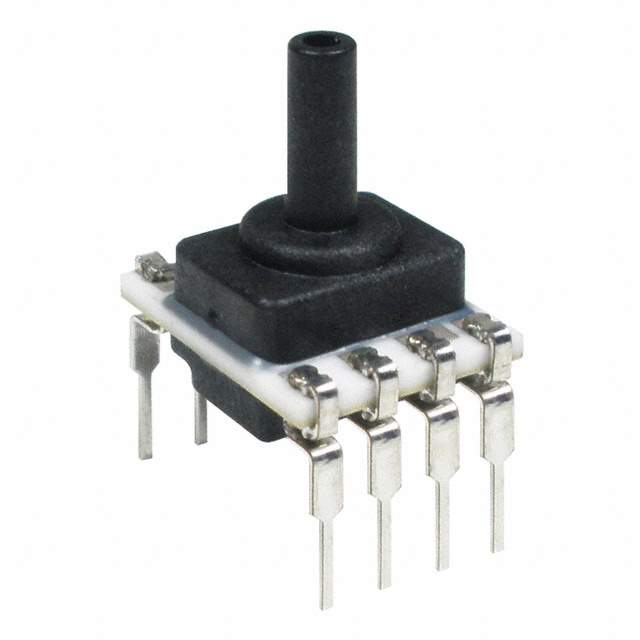

SSCDLNV2.5BGSA3 Real Image
Same model may have multiple batches, images only for reference.

SSCDLNV2.5BGSA3

Part No SSCDLNV2.5BGSA3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 36.26PSI (250kPa) Vented Gauge Male - 0.1" (2.47mm) Tube 12 b 8-DIP (0.524", 13.30mm), Top Port
Datasheet
SSCDLNV2.5BGSA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 36.26PSI (250kPa)
Output Type SPI
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 0.12PSI (0.8kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-DIP (0.524", 13.30mm), Top Port
Supplier Device Package 8-DIP
Base Product Number SSCDLNV
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234364-SSCDLNV2.5BGSA3
Ultra Librarian 3D Model Ultra Librarian SSCDLNV2.5BGSA3 CAD Model

Description

The TruStability® SSC series pressure sensor by Honeywell Sensing and Productivity Solutions is a high-quality component that is perfect for pressure sensing applications.

  • Amplified Output: Yes
  • Temperature Compensation: Yes
  • Pressure Type: Vented Gauge
  • Application: Board Mount
  • Output Type: SPI
  • Output: 12 b
  • Accuracy: ±0.25%
  • Operating Pressure: 36.26PSI (250kPa)
  • Maximum Pressure: 0.12PSI (0.8kPa)
  • Package: 8-DIP (0.524", 13.30mm)
  • Port Style: Top Port
  • Win Source Part Number: 1234364-SSCDLNV2.5BGSA3
