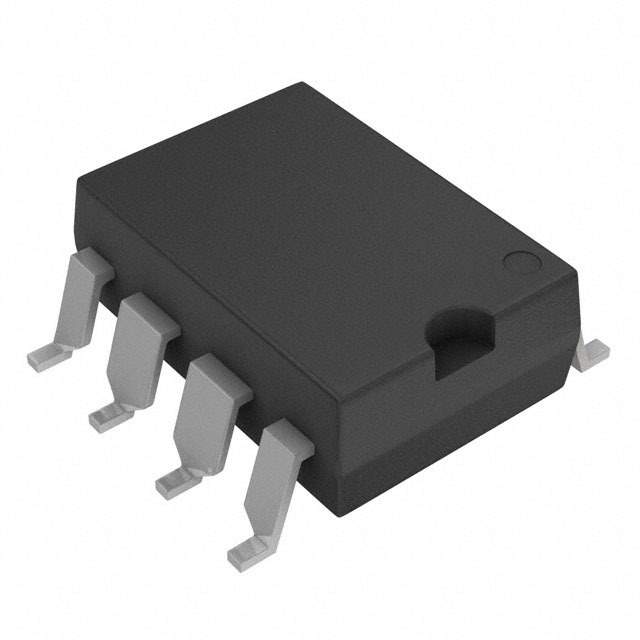

AMC1203BDUB - High-Precision Isolated Amplifier

The AMC1203BDUB is a high-precision isolated amplifier designed for accurate current shunt monitoring. It provides galvanic isolation to protect data acquisition systems and simplifies the design of motor control and power inverter solutions.

Features and Benefits

• Isolated Amplifier: Ensures high accuracy and safety with 4000 V RMS isolation to protect low-voltage side components.
• High CMRR: Supports better signal integrity in noisy environments with a common-mode rejection ratio (CMRR) greater than 95 dB.
• Wide Temperature Range: Functional from -40°C to 105°C, making it suitable for industrial applications.
• Low Offset Error: Provides an offset error as low as 5 μV for precision measurements.

Applications

• Motor Control Systems
• Power Inverters
• Battery Management Systems
• Industrial Process Control
