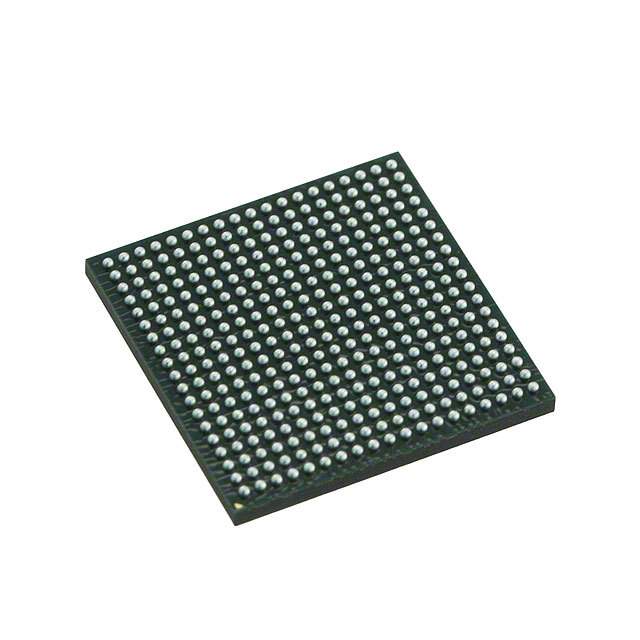

The Texas Instruments AM1808EZCED4 is a highly integrated and versatile microprocessor that serves as a core component for a wide range of embedded applications. This powerful chip is part of the Sitara™ family, which is known for its high performance, low power consumption, and a rich set of features.

Key Features:

• Processing Power: At the heart of the AM1808EZCED4 is an ARM9 core that can run up to 456 MHz, providing a balance between performance and power efficiency. This makes it suitable for applications that require a robust processing capability without draining too much power.
• Memory Support: The processor supports a wide range of external memory interfaces including DDR2, NAND Flash, and NOR Flash, allowing for flexible design choices depending on the memory requirements of the application.
• Rich Peripherals: It boasts an array of on-chip peripherals such as USB 2.0 with PHY, Ethernet MAC, CAN, MMC/SD card interfaces, and more, enabling connectivity with various devices and networks.
• Integrated Graphics: The device includes an embedded graphics engine that supports display resolutions up to 2048x2048 pixels, which is ideal for human-machine interface (HMI) applications.
• Industrial Communication: With its support for industrial communication protocols, the AM1808EZCED4 is well-suited for factory automation, HMI, and control system applications.
• Extended Temperature Range: This processor is designed to operate in an extended temperature range, making it reliable for use in harsh industrial environments.

Applications:

The versatility of the AM1808EZCED4 allows it to be used in a variety of applications, including:

• Industrial Automation and Control Systems
• Human-Machine Interface (HMI) Panels
• Portable Data Terminals
• Medical Devices
• Test and Measurement Equipment
• Networking and Communication Devices

The AM1808EZCED4 is an exemplary choice for designers looking to develop sophisticated embedded systems that require a high degree of integration, efficient power consumption, and connectivity, all while operating reliably in demanding conditions.
