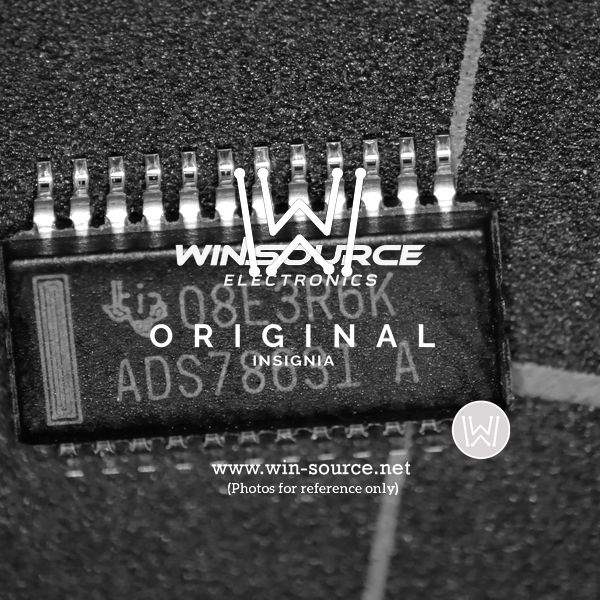

The ADS7863IDBQ is a high-performance, dual-channel analog-to-digital converter (ADC) from Texas Instruments, designed for applications requiring simultaneous and independent digitization of two analog signals. With its 12-bit resolution and 2 MSPS sampling rate per channel, this device is an excellent choice for high-speed signal processing tasks found in medical imaging, scientific instrumentation, and communication systems.

Key Features:

• Dual Simultaneous Sampling: The ADS7863IDBQ offers two independent ADCs that allow simultaneous sampling of two different analog inputs, ensuring accurate timing correlation between the two channels.
• High-Speed Performance: With a sampling rate of up to 2 million samples per second (MSPS) for each channel, this ADC is capable of capturing high-frequency signals with precision.
• 12-Bit Resolution: The device provides 12-bit resolution, yielding detailed and precise digital representations of the input analog signals.
• Low Power Consumption: Designed for efficiency, the ADS7863IDBQ operates with a low power consumption, making it suitable for power-sensitive applications.
• Flexible Interface Options: It features a serial peripheral interface (SPI) for easy connection to microcontrollers and digital signal processors (DSPs).
• Compact Package: The device is available in a small, surface-mount SSOP (Shrink Small Outline Package), ideal for space-constrained applications.

Applications:

• Medical Imaging Systems
• Scientific Instruments
• Communication Systems
• Data Acquisition Systems
• Portable Instrumentation

The ADS7863IDBQ is a testament to Texas Instruments' commitment to providing state-of-the-art integrated circuits that enhance the performance and efficiency of electronic systems. Whether it’s for capturing complex medical data or for precision measurement in scientific research, this ADC offers the accuracy and speed needed for demanding applications.
