Product Overview: Texas Instruments ADS5204IPFBR

The ADS5204IPFBR is a high-performance, 10-bit, 4-channel, analog-to-digital converter (ADC) designed by Texas Instruments, a leader in semiconductor technology. This advanced ADC is part of the ADS5204 family and is particularly suitable for applications that require high-speed data acquisition, such as medical imaging, test and measurement equipment, and communication systems.

With a maximum sampling rate of up to 65 MSPS (Mega Samples Per Second), the ADS5204IPFBR ensures accurate digitization of fast analog signals, making it an ideal choice for high-speed signal processing tasks. Each of the four channels features a sample-and-hold circuit, which allows for simultaneous sampling and thus preserves the relative timing information of multi-channel signals.

The device operates with a single 5V power supply, minimizing power consumption while maintaining performance. Additionally, it includes an internal reference voltage, which simplifies system design by reducing the number of external components required. For applications that require an external reference, the ADS5204IPFBR also supports this option, providing designers with flexibility in system design.

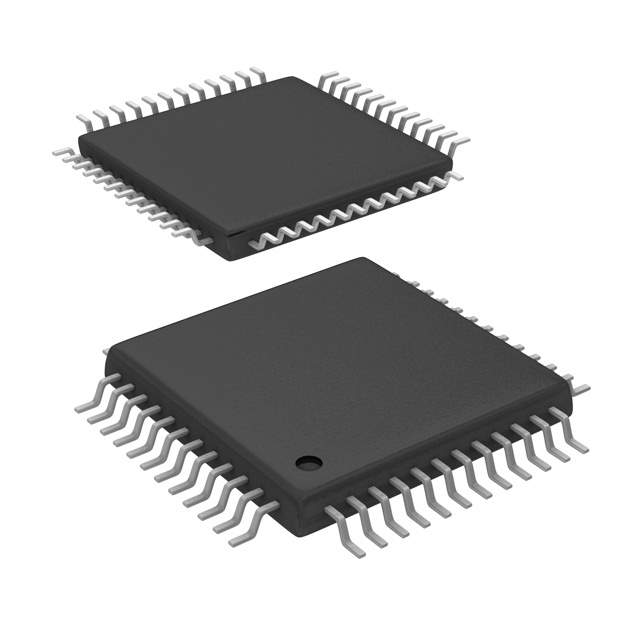

The ADS5204IPFBR comes in a compact 48-TQFP (Thin Quad Flat Pack) package, making it suitable for space-constrained applications. Its digital output is in LVDS (Low Voltage Differential Signaling) format, which reduces the number of interface lines needed and minimizes digital noise, thus ensuring high signal integrity.

Furthermore, the device features a programmable gain amplifier (PGA) for each channel, which allows users to adjust the input range and optimize the ADC for different input signal amplitudes. The PGA, along with a flexible input multiplexer, enables the ADS5204IPFBR to be easily integrated into a variety of system designs.

In summary, the Texas Instruments ADS5204IPFBR is a versatile and powerful ADC solution that provides high-speed, accurate data conversion with low power consumption. Its multi-channel capability and programmable features make it an excellent choice for a wide range of demanding applications.
