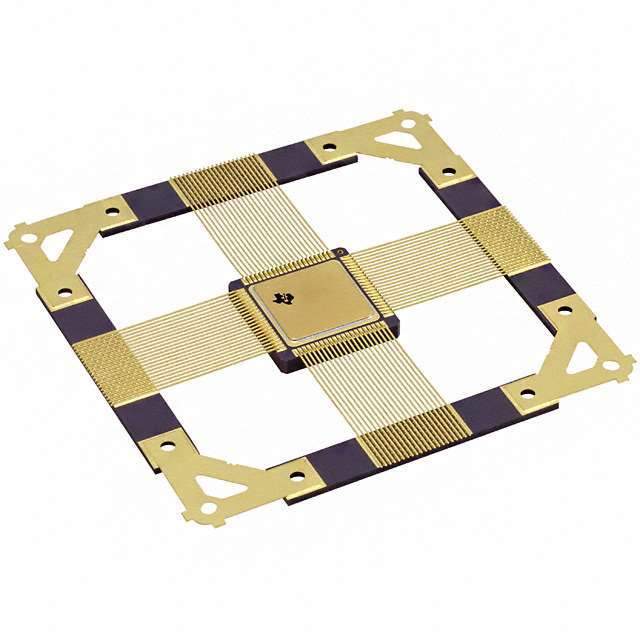

The ADS1278SHFQ from Texas Instruments is a high-performance, octal-channel analog-to-digital converter (ADC) designed for applications requiring high-precision data acquisition. This ADC features 24-bit resolution and a highly integrated design that combines eight low-noise, programmable gain amplifiers (PGAs) and anti-aliasing filters, making it an ideal solution for industrial, medical, and scientific instrumentation.

With a maximum data rate of 105k samples per second per channel, the ADS1278SHFQ provides a flexible and efficient data acquisition system that can be synchronized across multiple devices for larger channel count systems. The device operates over a wide supply voltage range, and its low-power design makes it suitable for portable and battery-powered applications.

Key Features

• High Precision: 24-bit resolution ensures that the ADS1278SHFQ captures the full dynamic range of the input signal with high accuracy.
• Integrated PGAs: Programmable gain amplifiers allow for signal conditioning and amplification, supporting a variety of sensor types and signal ranges.
• Simultaneous Sampling: All eight channels are sampled at the same time, which is crucial for multi-channel applications where phase information is important.
• Low Power Consumption: The device is designed to minimize power usage, making it suitable for energy-sensitive applications.
• Flexible Interface: A serial peripheral interface (SPI) provides a high-speed connection to most microcontrollers or digital signal processors (DSPs).

Applications

• Industrial Process Control
• Medical Imaging Systems
• Scientific Instrumentation
• Seismic Data Acquisition
• Acoustic Analysis

The ADS1278SHFQ is a robust and versatile ADC that delivers the performance needed for demanding applications. Its combination of high resolution, integrated features, and ease of use make it an excellent choice for designers looking to create sophisticated data acquisition systems.
