The Texas Instruments ADS1118IRUGR is a precision, low-power, 16-bit analog-to-digital converter (ADC) designed to provide a variety of advanced features for a range of applications. This high-performance ADC is ideal for applications requiring high-resolution measurement, such as portable instrumentation, battery monitoring, temperature sensing, and factory automation.

Key Features

• Resolution: The ADS1118IRUGR boasts a 16-bit resolution, ensuring high-precision data conversion for sensitive applications.
• Integrated Temperature Sensor: An on-board temperature sensor provides direct digital output, eliminating the need for external circuitry for temperature measurements.
• Programmable Gain Amplifier (PGA): The built-in PGA offers gains ranging from 1 to 16, making it suitable for measuring small signals in the presence of noise.
• Data Rate: Users can select from eight different data rates, from 8SPS to 860SPS, to optimize speed and power consumption according to their specific needs.
• Interface: The SPI-compatible serial interface ensures easy communication with microcontrollers and processors.
• Power Supply: The device operates from a single power supply ranging from 2.0V to 5.5V, which is convenient for battery-powered and portable applications.
• Low Current Consumption: With a low current consumption of just 150μA at a data rate of 16SPS, the ADS1118IRUGR is optimized for power-sensitive applications.

Applications

The versatility of the ADS1118IRUGR allows it to be used in a wide array of applications, including:

• Portable Instrumentation
• Battery Monitoring and Power Management
• Temperature Sensing and Control Systems
• Data Acquisition Systems
• Factory Automation and Process Controls

Package and Quality

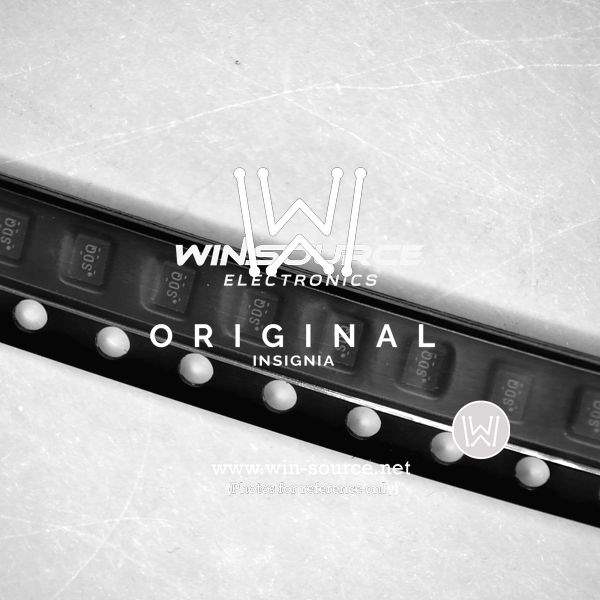

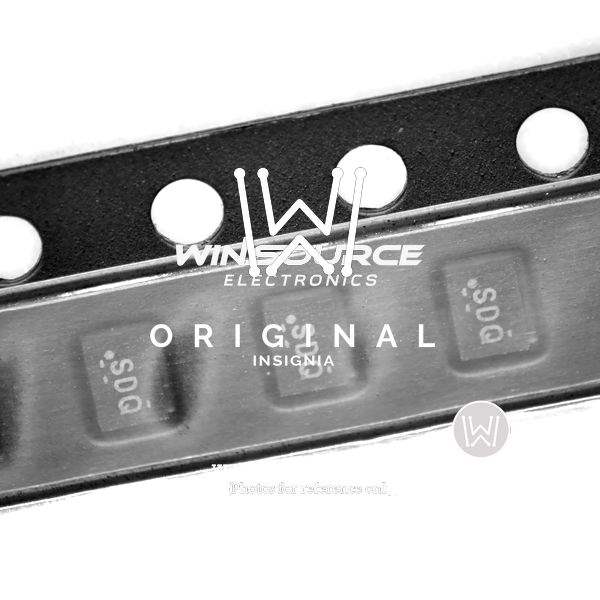

The ADS1118IRUGR comes in a compact VQFN-10 package, making it suitable for space-constrained applications. Texas Instruments is known for its commitment to quality, and this product is no exception. It is designed to meet the rigorous standards required for industrial and commercial use, ensuring reliability and performance.
