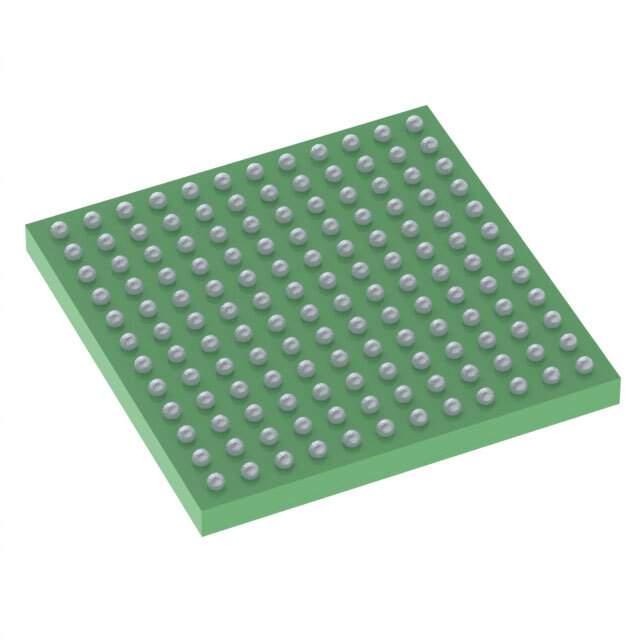

The Texas Instruments ADC12DJ5200RF is a state-of-the-art, high-performance analog-to-digital converter (ADC) designed to meet the demanding requirements of advanced radio frequency (RF) sampling applications. This device is part of TI's extensive portfolio of high-speed data converters that are engineered to provide precision, speed, and flexibility for a wide range of applications.

Key Features

• Resolution: The ADC12DJ5200RF boasts a 12-bit resolution, ensuring high-fidelity digital representation of the analog input signal.
• Sampling Rate: With a maximum sampling rate of 5.2 GSPS (giga-samples per second) in dual-channel mode and up to 10.4 GSPS in single-channel mode, this ADC is ideal for high-bandwidth applications.
• Dual-Channel Flexibility: Users can leverage the dual-channel mode for simultaneous sampling of two independent input signals or the single-channel mode for increased sampling rate on a single input.
• Input Frequency: It features an RF-sampling capability with input frequencies of up to 6 GHz, making it suitable for direct RF sampling in wireless communication systems.
• Programmable Digital Down Converter (DDC): The integrated DDC enables digital down-conversion and decimation, which reduces data rates and simplifies subsequent digital signal processing.
• JESD204B Interface: The ADC12DJ5200RF uses the JESD204B high-speed serial interface for data transfer, facilitating efficient communication with digital processors.
• Power Efficiency: Designed with power efficiency in mind, it operates with a reduced power consumption that is essential for high-density system designs.

Applications

This ADC is well-suited for a variety of applications, including:

• Wireless infrastructure (e.g., 5G, LTE, multi-carrier GSM)
• Phased array radar systems
• Test and measurement equipment
• Electronic warfare and defense systems
• High-speed data acquisition systems

The ADC12DJ5200RF from Texas Instruments is an exemplary choice for designers looking to integrate high-speed data conversion with precision and reliability. Its advanced features and robust performance make it a versatile solution for cutting-edge RF technology implementations.
