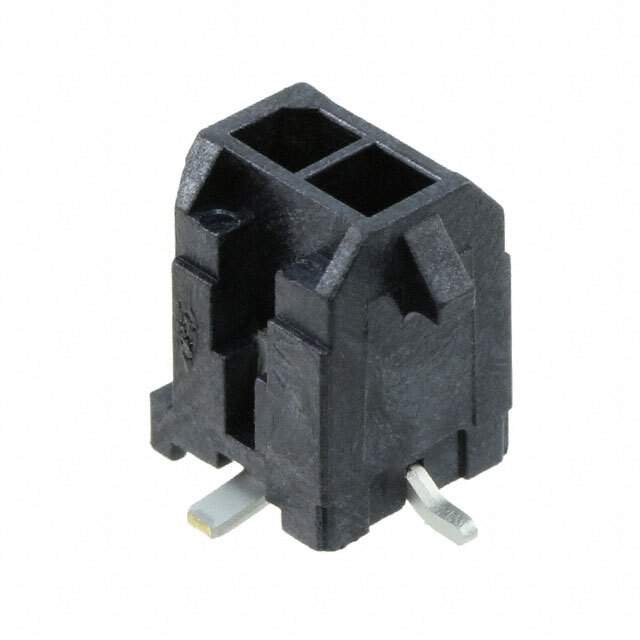

43045-0220 Real Image
Same model may have multiple batches, images only for reference.

43045-0220

Part No 43045-0220
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 2 POS 3mm Solder ST Top Entry SMD Micro-Fit 3.0 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Brass
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 5 A
Depth 8.77 mm
Fastening Type Ramp
Gender Male
Housing Color Black
Housing Material Polymer
Insulation Resistance 1 GΩ
Lead Free Lead Free
Lead Pitch 3 mm
Length 10.65 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 2
Number of Contacts 2
Number of Positions 2
Number of Rows 2
Orientation Vertical
Packaging Tape & Reel
Pitch 3 mm
Plating Tin
RoHS Compliant
Row Spacing 2.9972 mm
Termination Solder
Voltage Rating (DC) 250 V
Win Source Part Number 1163969-43045-0220
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 43045-0220 CAD Model

Description

The 1163969-43045-0220 is a male pin connector from Molex. It has a pitch of 3 mm and comes in a tape and reel packaging.

  • Connector Type: Male Pin
  • Manufacturer: Molex
  • Pitch: 3 mm
  • Packaging: Tape and Reel
  • Rows: 2
  • Positions: 2
  • Row Spacing: 2.9972 mm
  • Current Rating: 5 A
  • Contact Resistance: 10 mΩ
  • Housing Material: Polymer
  • Housing Color: Black
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Voltage Rating: 250 V
  • Insulation Resistance: 1 GΩ
  • Supply and Demand Status: Limited
