Same model may have multiple batches, images only for reference.

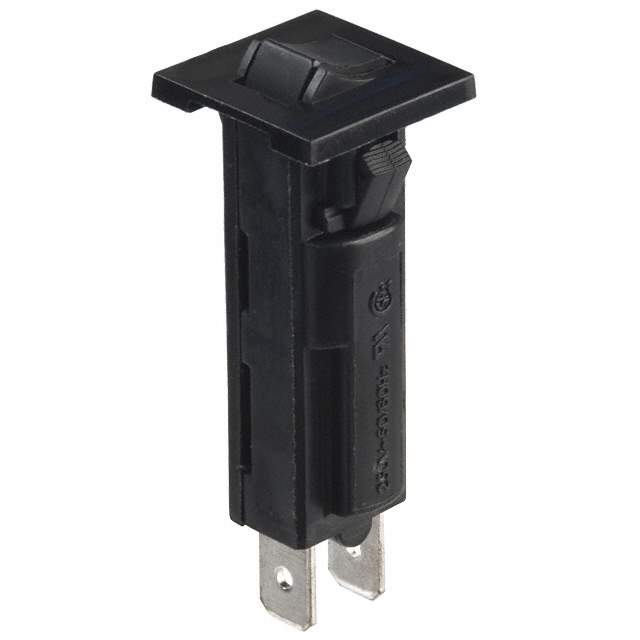

W28-XQ1A-0.75 Real Image
Same model may have multiple batches, images only for reference.

W28-XQ1A-0.75

Part No W28-XQ1A-0.75
Manufacturer TE Connectivity
Catalog Circuit Breakers
Description CIR BRKR THRM 750MA 250VAC 32VDC / Circuit Breaker Thermal 1Pole 0.75A 250VAC/32VDC
Datasheet
W28-XQ1A-0.75 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer TE Connectivity Potter & Brumfield Relays
Series W28
Breaker Type Thermal
Current Rating 750mA
Voltage Rating - AC 250V
Voltage Rating - DC 32V
Number of Poles 1
Actuator Type Push to Reset
Mounting Panel Mount
Win Source Part Number 769414-W28-XQ1A-0.75
Popularity Medium
Supply and Demand Status Limited
Family Name W28
Introduction Date July 29, 2000
ECCN EAR99
Country of Origin China, Taiwan, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian W28-XQ1A-0.75 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays W28 series is a panel mount thermal breaker with a current rating of 750mA and a voltage rating - AC of 250V and voltage rating - DC of 32V.

  • Actuator Type: Push to Reset
  • Illumination: No
  • Poles: 1
  • Family: W28
  • ECCN: EAR99
  • Estimated EOL Date: 2023
  • Halogen Free: No
  • Popularity: Medium
  • Supply and Demand Status: Limited
