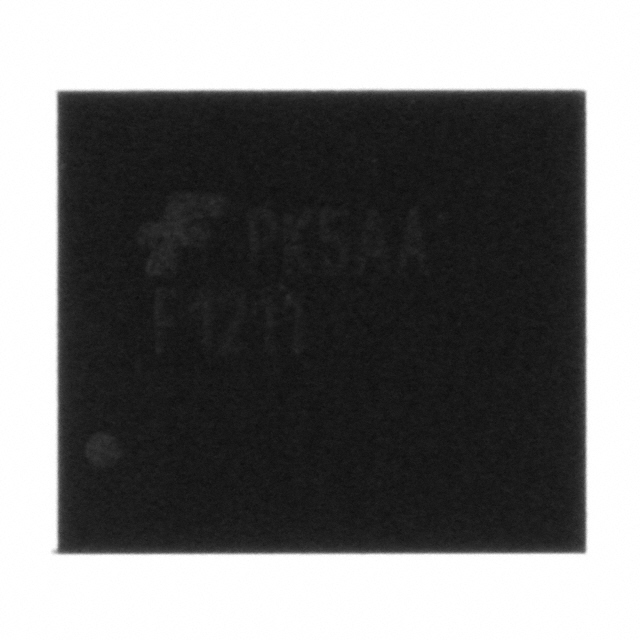

Same model may have multiple batches, images only for reference.
FSA1211UMX Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FSA1211UMX

Part No FSA1211UMX
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches - Special Purpose
Description IC SWITCH SPST 28UMLP
Datasheet
FSA1211UMX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Cut Reel
Applications Isolation
Switch Circuit SPST
Number of Channels 12
Max On Resistance 7.5 Ohm (Typ)
Single Supply Voltage (V+) 2.6 V to 4.3 V
-3db Bandwidth 720MHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 28-UMLP (3.5x4)
Win Source Part Number 104002-FSA1211UMX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FSA1211UMX CAD Model

Description

The Fairchild/ON Semiconductor FSA1211UMX is a SPST switch circuit integrated circuit with 12 channels designed for isolation applications.

  • -3db Bandwidth: 720MHz
  • Max On Resistance: 7.5 Ohm (Typ)
  • Single Supply Voltage (V+): 2.6 V to 4.3 V
  • Case/Package: 28-UMLP (3.5x4)
  • Temperature Range: -40°C to 85°C (TA)
  • Supply and Demand Status: Balanced
