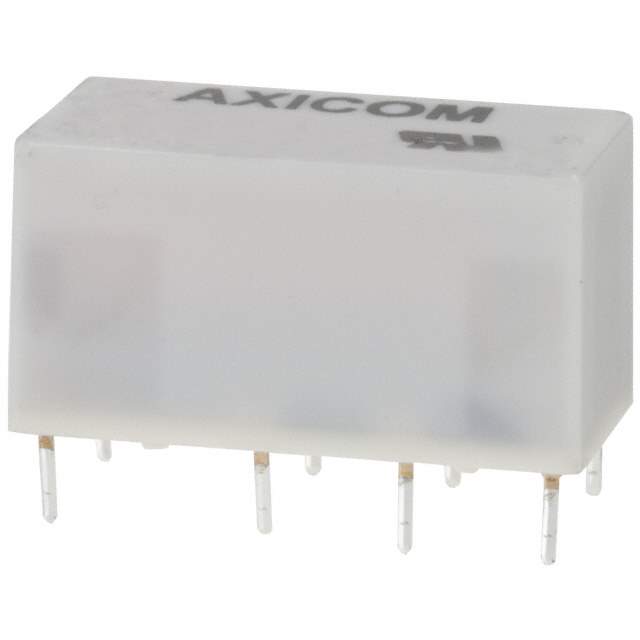

V23105-A5403-A201 Real Image
Same model may have multiple batches, images only for reference.

V23105-A5403-A201

Part No V23105-A5403-A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY TELECOM DPDT 3A 12V
Datasheet
V23105-A5403-A201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 6ms
Release Time 4ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 213820-V23105-A5403-A201
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian V23105-A5403-A201 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays V23105-A5403-A201 is a DPDT (2 Form C) relay that is designed for telecom applications.

  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Contact Rating: 3A
  • Switching Voltage: 250VAC/220VDC
  • Turn On Voltage: 8.4VDC
  • Turn Off Voltage: 0.6VDC
  • Supply and demand status: balanced
