Same model may have multiple batches, images only for reference.

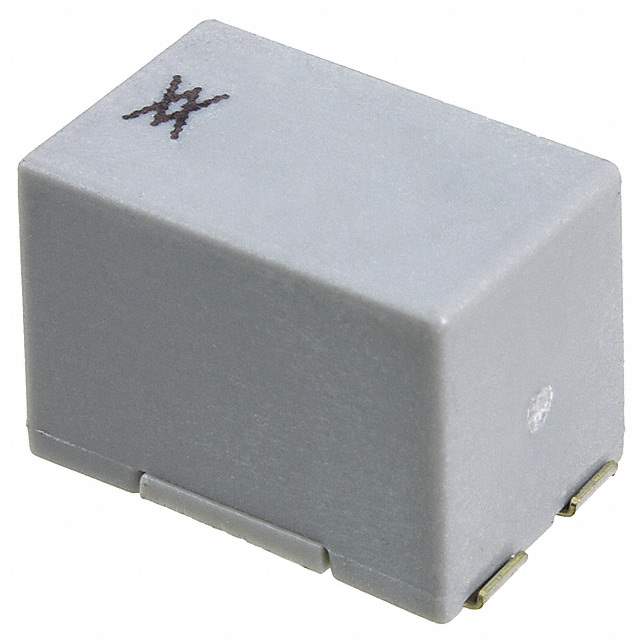

TSM600-250F-2 Real Image
Same model may have multiple batches, images only for reference.

TSM600-250F-2

Part No TSM600-250F-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.25A(hold) 0.86A(trip) 250VDC 3A 2W 6s 1Ohm SMD Solder Pad 17.6 X 11.2 X 11.7mm T/R / POLYSWITCH 250V 250MA HOLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch
Packaging Reel
Voltage - Max 250V
Current - Max 3A
Current - Hold (Ih) (Max) 250mA
Current - Trip (It) 860mA
R Min/Max 1.000 ~ 3.500 Ohm
Time to Trip 6s
Package 4-SMD
Catalog PolySwitch Telecommunications and Networking
Win Source Part Number 056949-TSM600-250F-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TSM600
Introduction Date November 09, 2015
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TSM600-250F-2 CAD Model

Description

The TE Connectivity TSM600-250F-2 is a PTC resettable fuse from the PolySwitch series.

  • Series: PolySwitch
  • Maximum Voltage: 250V
  • Maximum Current: 3A
  • Current Hold (Ih) (Max): 250mA
  • Current Trip (It): 860mA
  • R Min/Max: 1.000 ~ 3.500 Ohm
  • Time to Trip: 6s
  • Package: 4-SMD
  • Operating Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Limited
  • Manufacturer: TE Connectivity
