Same model may have multiple batches, images only for reference.

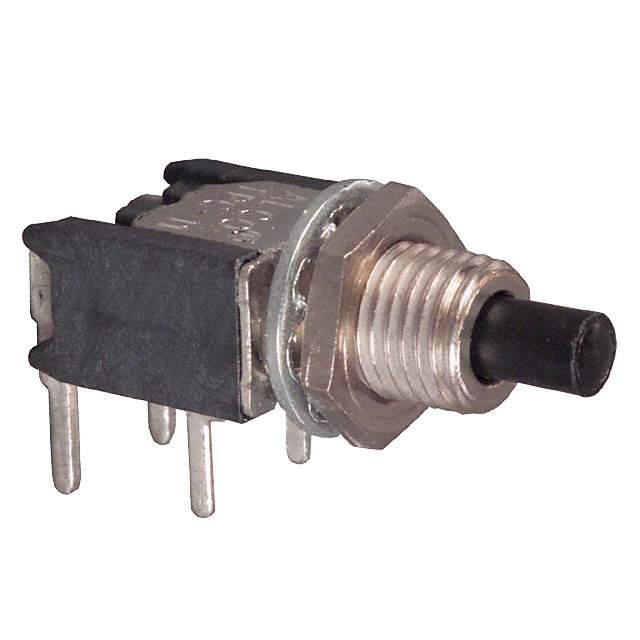

TPC11CGRA0 Real Image
Same model may have multiple batches, images only for reference.

TPC11CGRA0

Part No TPC11CGRA0
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4VA 20V / Pushbutton Switch SPST-NO Standard Panel Mount, Right Angle, Rear
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series TP
Package Bulk
Mounting Type Panel Mount, Right Angle, Rear
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Panel Cutout Dimensions Circular - 4.83mm Dia
Temperature Range - Operating -30°C ~ 65°C
Electrical Life 100,000 Cycles
Base Product Number TPC11
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Other Names 1437572-7,-TPC11CGRA0-SI,450-1108,0-1437572-7
Standard Package 25
Win Source Part Number 1034771-TPC11CGRA0
Ultra Librarian 3D Model Ultra Librarian TPC11CGRA0 CAD Model

Description

The TPC11CGRA0 is a standard pushbutton switch in the TP series.

  • Series: TP
  • Actuator Type: Circular Plunger
  • Mounting: Panel Mounted, Right Angle (Rear of Panel)
  • Circuit Configuration: SPST (Normally Open)
  • Switch Function: Off-Mom
  • Actuator/Cap Color: Black
  • Marking on Actuator: None
  • Voltage Rating: 20V AC/DC
  • Current Rating: 0.4VA (AC/DC)
  • Mechanical Life: 100,000 Cycles
  • Panel Cutout Dimensions: 4.83mm Diameter
  • Packaging: Bulk
