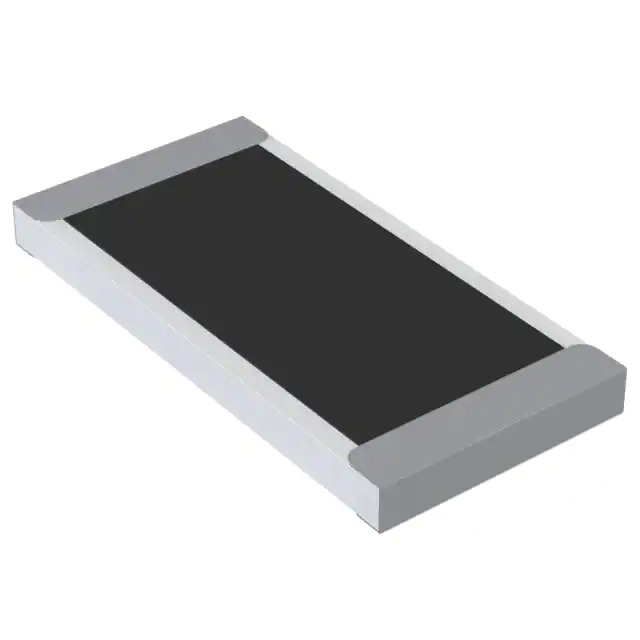

Same model may have multiple batches, images only for reference.
TLR3A20DR001FTDG TE Connectivity
Same model may have multiple batches, images only for reference.

TLR3A20DR001FTDG

Part No TLR3A20DR001FTDG
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.001 OHM 1% 2W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TLR, CGS
Package Tape & Reel
Product Status Active
Resistance 1 MOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Failure Rate -
Base Product Number TLR3A20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375571-TLR3A20DR001FTDG
Ultra Librarian 3D Model Ultra Librarian TLR3A20DR001FTDG CAD Model

Description

The TE Connectivity Passive Product Chip Resistor is a high-quality surface mount resistor designed for precision applications. It has a resistance value of 1 MOhms and a power rating of 2W, making it suitable for a wide range of circuit designs.

  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Packaging: Tape and Reel
