Same model may have multiple batches, images only for reference.

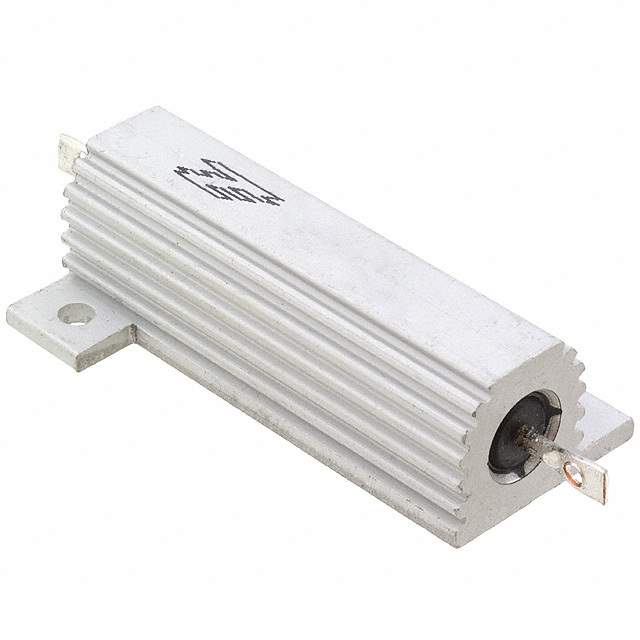

THS5022KJ Real Image
Same model may have multiple batches, images only for reference.

THS5022KJ

Part No THS5022KJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 22K OHM 5% 50W  /  22 kOhms ±5% 50W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series THS, CGS
Package Tray
Resistance 22 kOhms
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.008" L x 1.181" W (51.00mm x 30.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number THS50
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names THS5022KJ-ND,6-1879071-0,A132045,6-1879071-0-ND
Standard Package 100
Win Source Part Number 1063496-THS5022KJ
Ultra Librarian 3D Model Ultra Librarian THS5022KJ CAD Model

Description

The TE Connectivity Passive Product 1063496-THS5022KJ is a high-quality chassis mount resistor designed for use in various electronic devices manufactured by TE Connectivity Passive Product.

  • Power Rating: 50W
  • Resistance: 22 kOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±30ppm/°C
  • Supply and Demand Status: Sufficient
