Same model may have multiple batches, images only for reference.

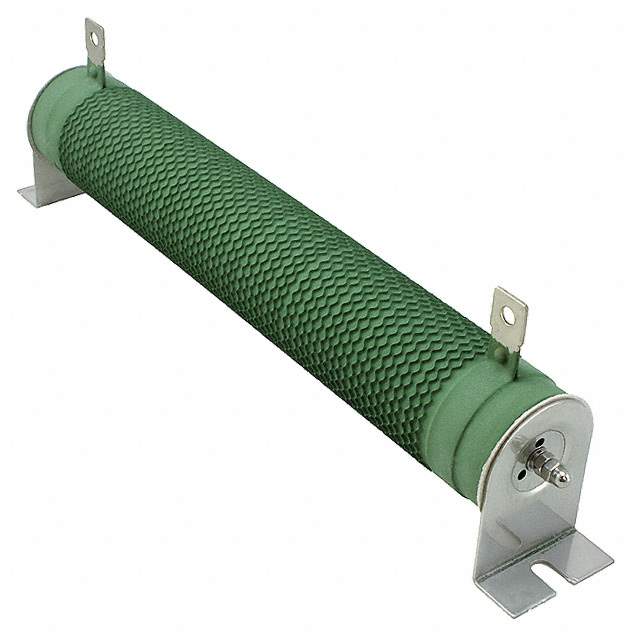

TE500B47RJ Real Image
Same model may have multiple batches, images only for reference.

TE500B47RJ

Part No TE500B47RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 47 OHM 5% 500W / 47 Ohms ±5% 500W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series TE, CGS
Package Bulk
Resistance 47 Ohms
Tolerance ±5%
Power (Watts) 500W
Composition Wirewound
Temperature Coefficient ±440ppm/°C
Temperature Range - Operating -25°C ~ 225°C
Features Flame Proof, Safety
Coating, Housing Type Silicone Coated
Mounting Feature Brackets
Dimension 1.969" Dia x 12.441" L (50.00mm x 316.00mm)
Lead Style Solder Lugs
Package / Case Radial, Tubular
Base Product Number TE500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 2-1879450-1,2-1879450-1-ND,A131317,TE500B47RJ-ND
Standard Package 1
Win Source Part Number 1056674-TE500B47RJ
Ultra Librarian 3D Model Ultra Librarian TE500B47RJ CAD Model

Description

TE Connectivity Passive Product's 1056674-TE500B47RJ is a wirewound resistor with a resistance of 47 Ohms and a power rating of 500W.

  • Resistance: 47 Ohms
  • Power Rating: 500W
  • Temperature Range: -25°C to 225°C
  • Design: Flame-proof and safety
  • Coating: Silicone
  • Composition: Wirewound
  • Tolerance: ±5%
  • Package: Radial, tubular with brackets
  • Lead Style: Solder lugs
  • Failure Rate: Not specified
  • Series: TE and CGS series
  • Alternative Parts: Yes
