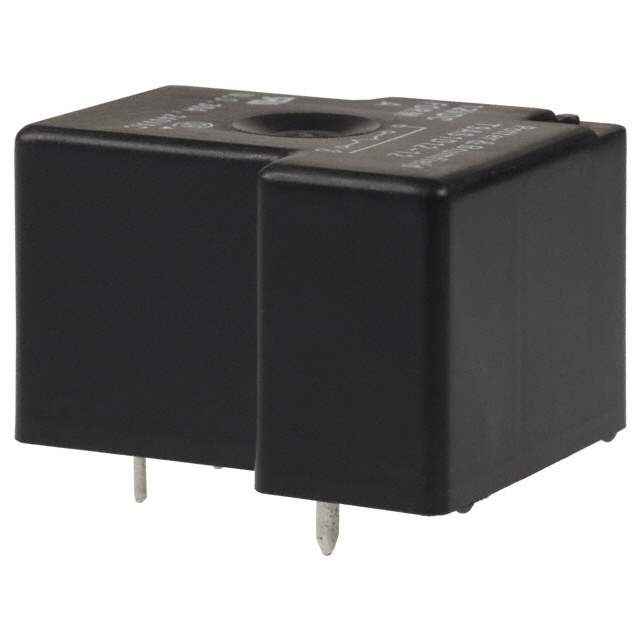

T9AS5D12-12 Real Image
Same model may have multiple batches, images only for reference.

T9AS5D12-12

Part No T9AS5D12-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 20A 12V
Datasheet
T9AS5D12-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 83mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 15ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 1 W
Coil Resistance 144 Ohms
Temperature Range - Operating -55°C to 85°C
Win Source Part Number 037446-T9AS5D12-12
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T9AS5D12-12 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays T9AS5D12-12 is a general-purpose relay designed for use in various applications.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Win Source Part Number: 037446-T9AS5D12-12
  • Supply and Demand Status: Limited
  • Termination Style: PC Pin
  • Insulation: Class F
  • Sealed: Fully Sealed
  • Contact Form: SPDT (1 Form C)
  • Mounting: Through Hole
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 20A
  • Switching Voltage: 277VAC - Max
  • Turn On Voltage (max): 9 VDC
  • Turn Off Voltage (min): 1.2 VDC
  • Release Time: 15ms
  • Coil Power: 1 W
  • Temperature Range: -55°C to 85°C
